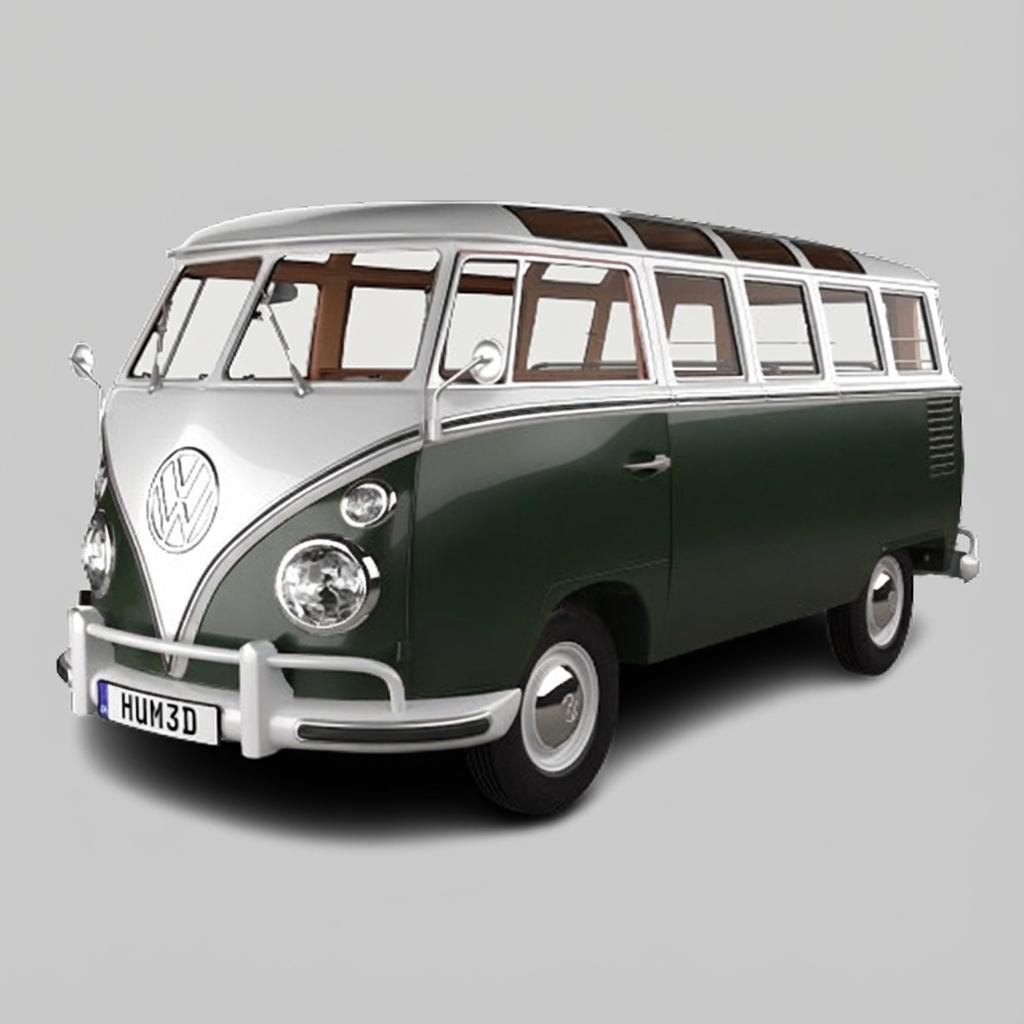

Classic conversions
Iconic vehicles, electrified
- Defender
- Bronco
- Toyota FJ

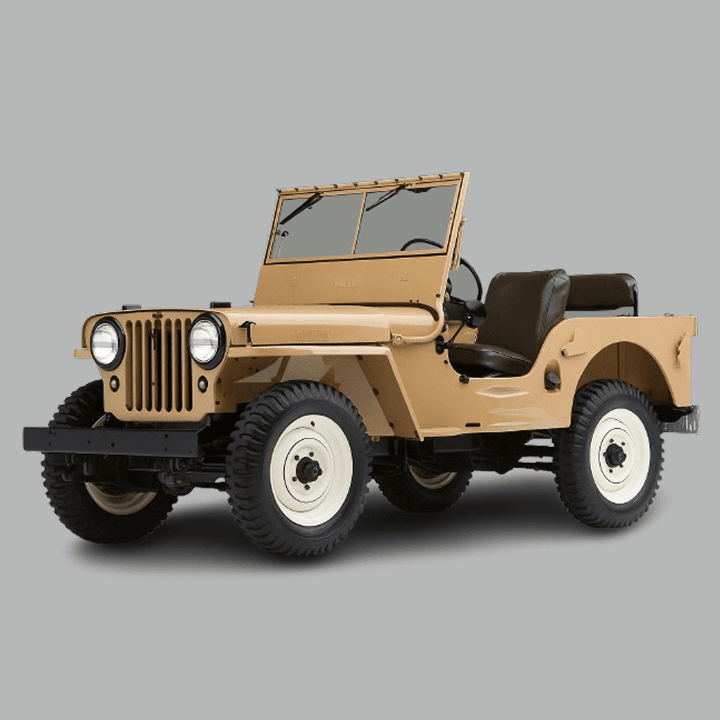

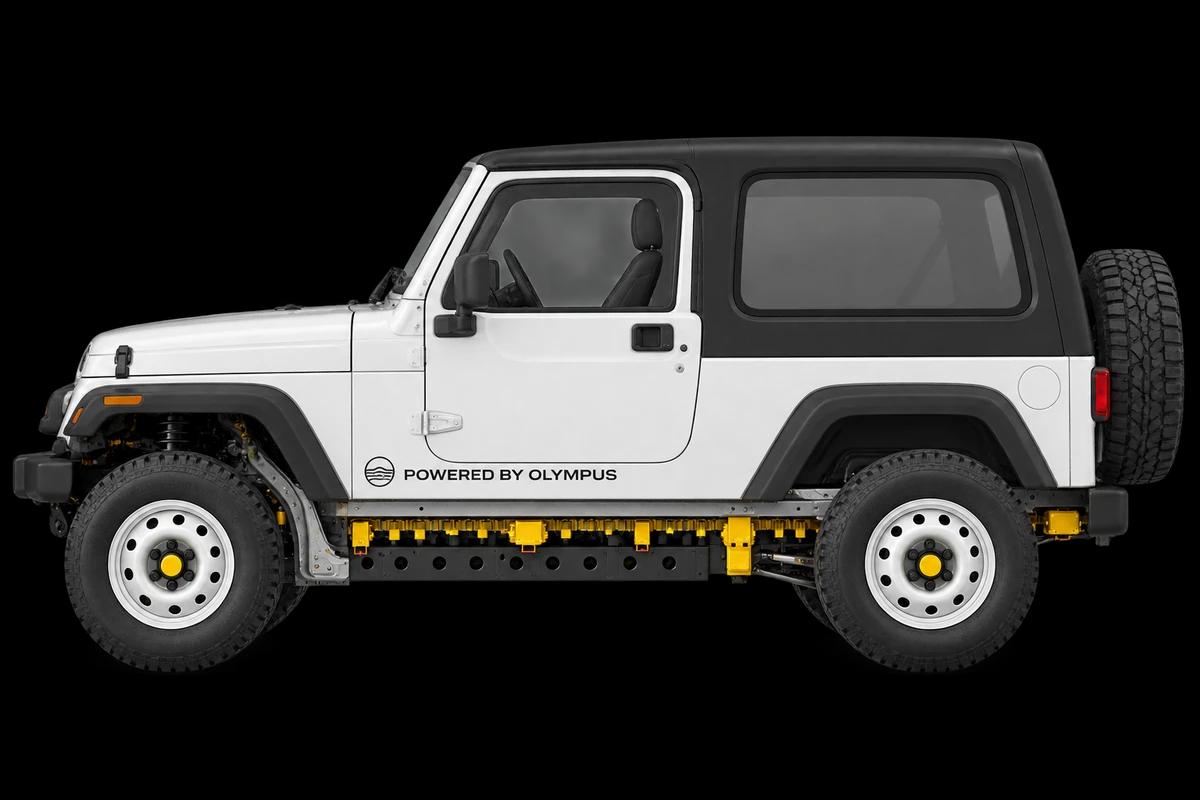

- Jeep

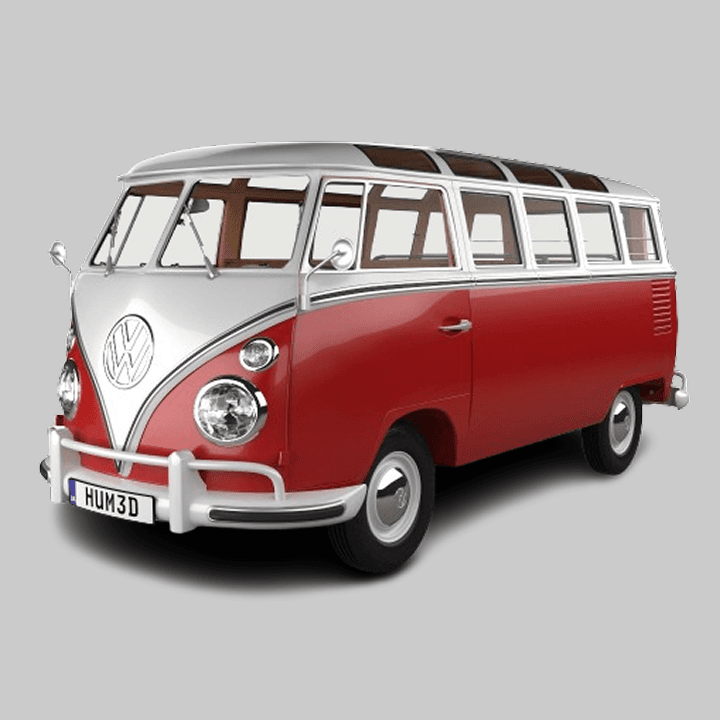

- VW Westfalia
- Citroën H Van
01 // Open · Scalable · Proven

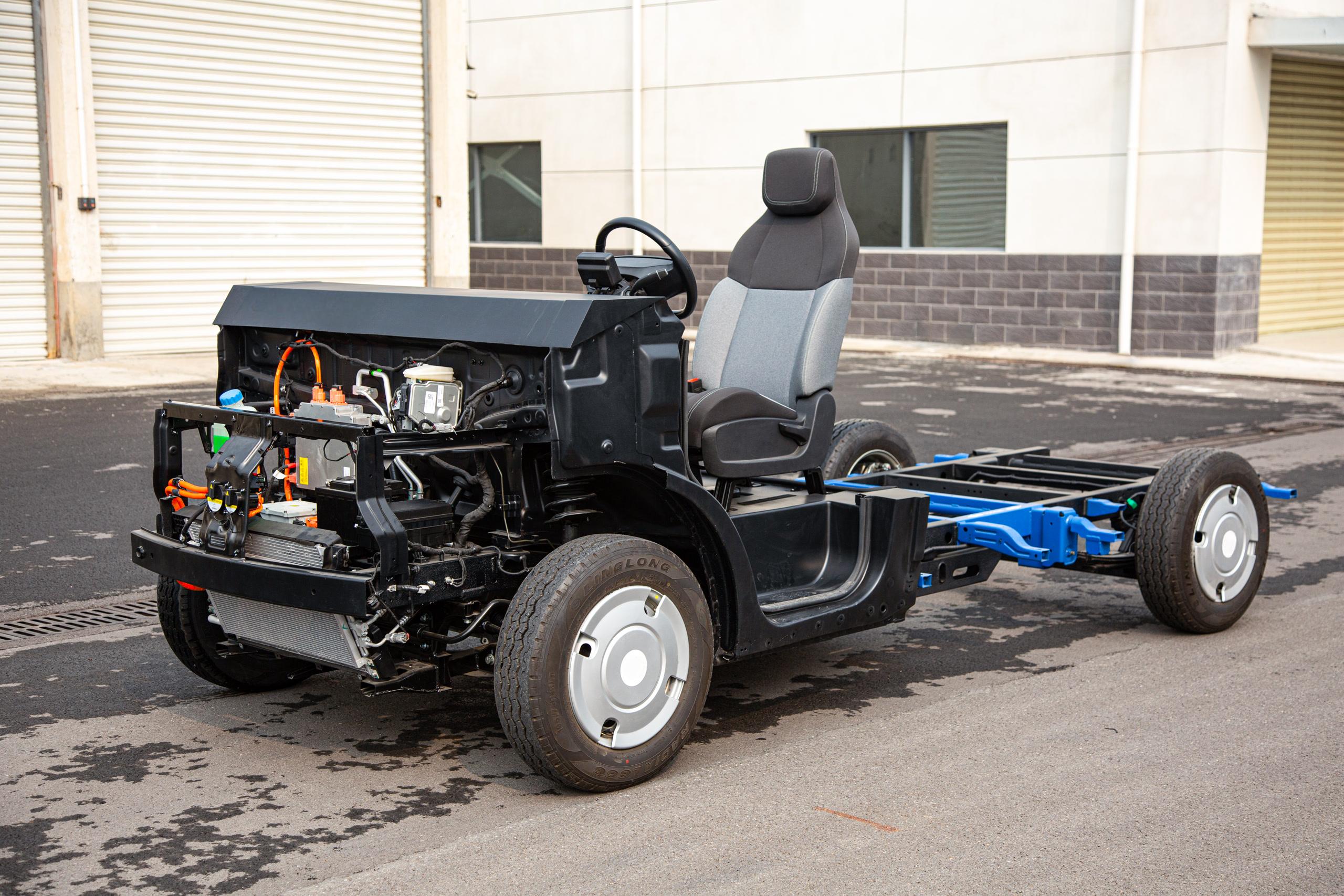

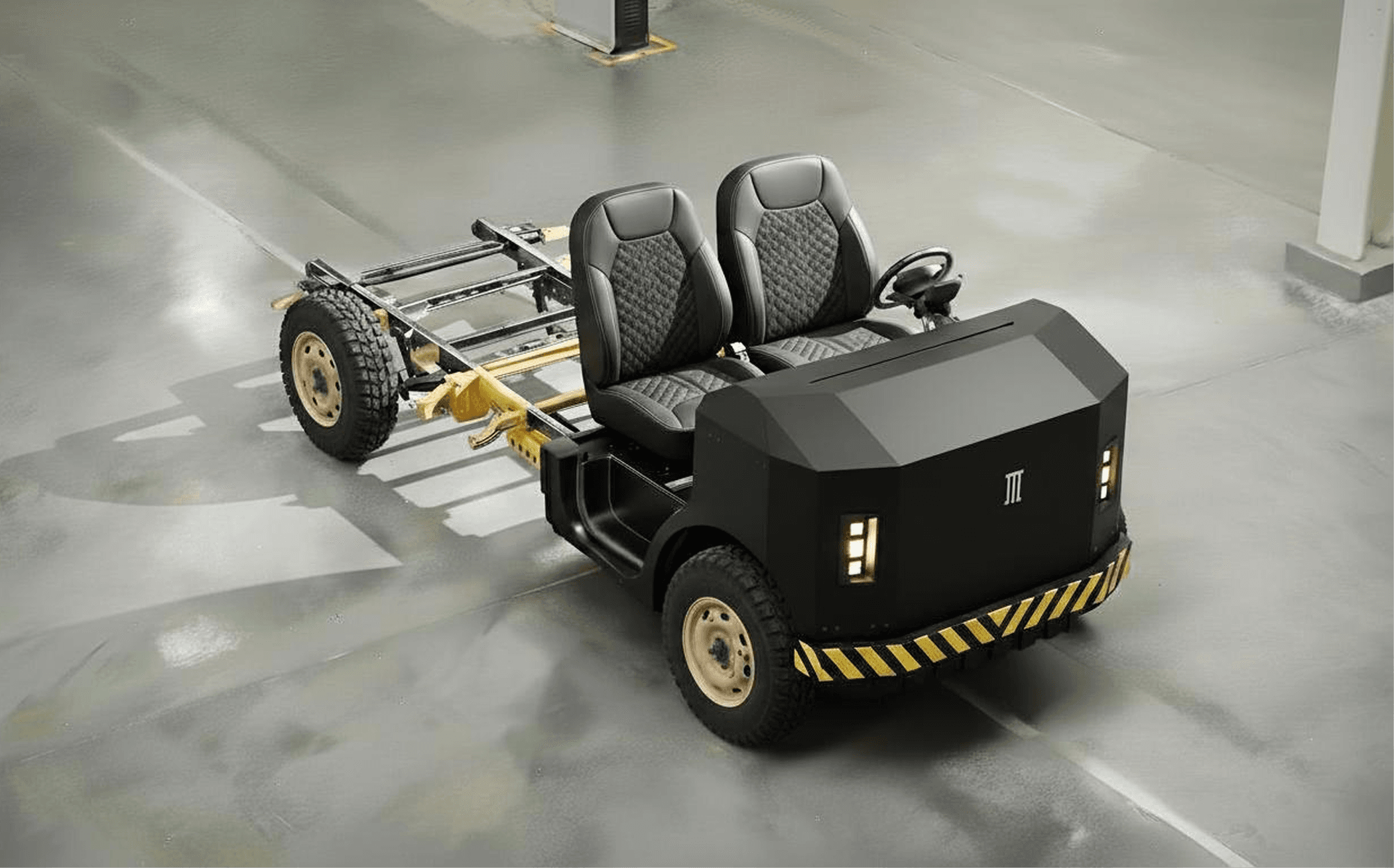

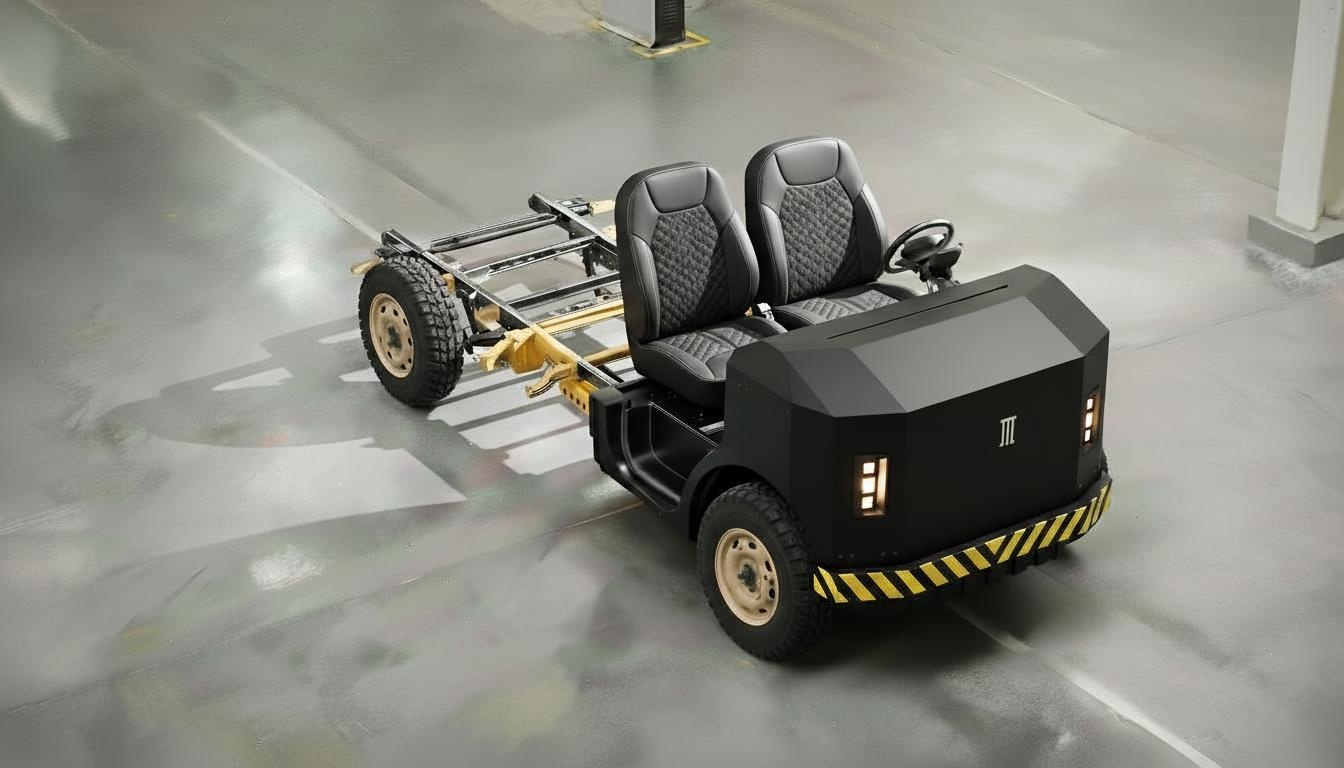

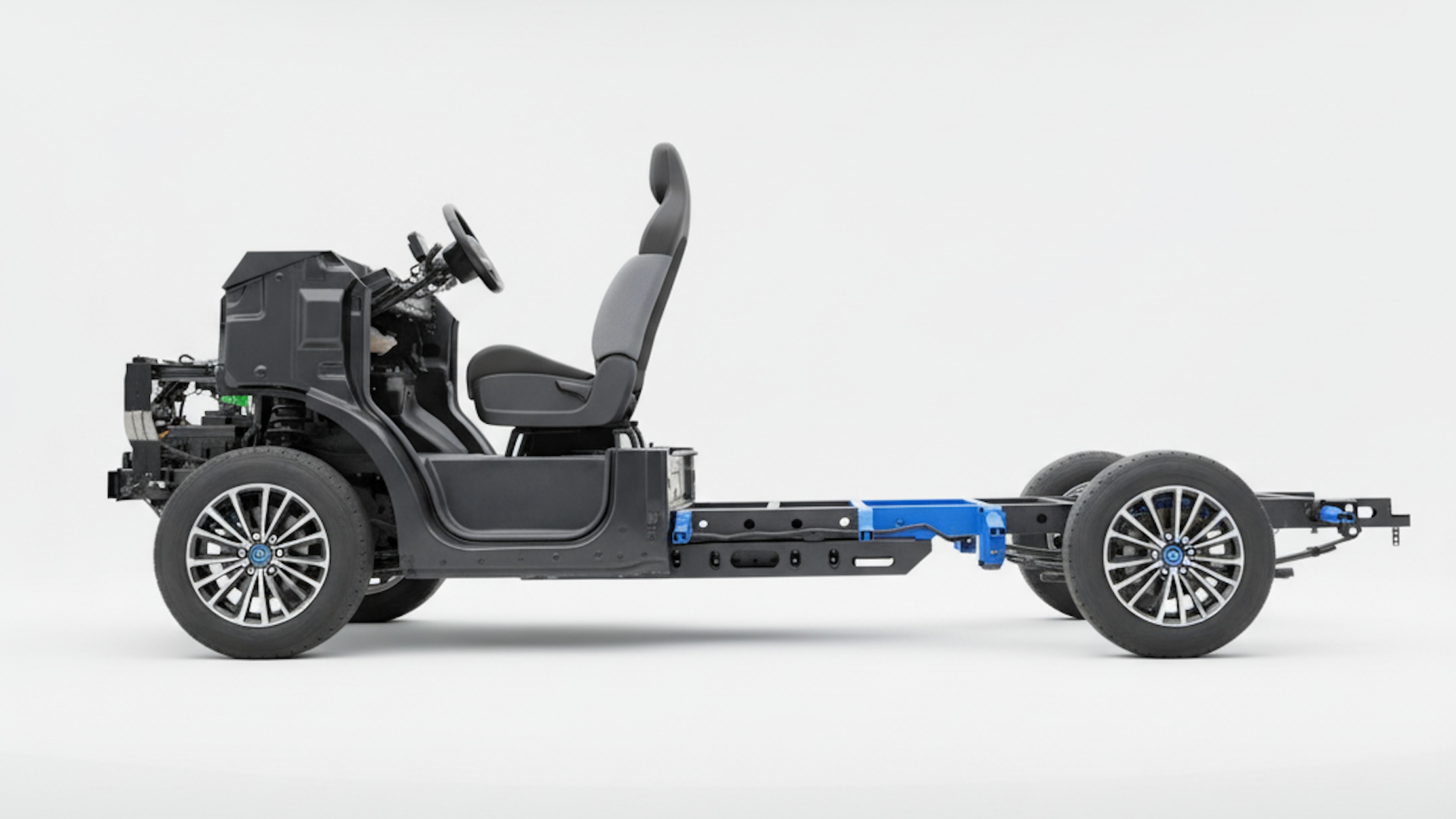

Olympus Platform V3

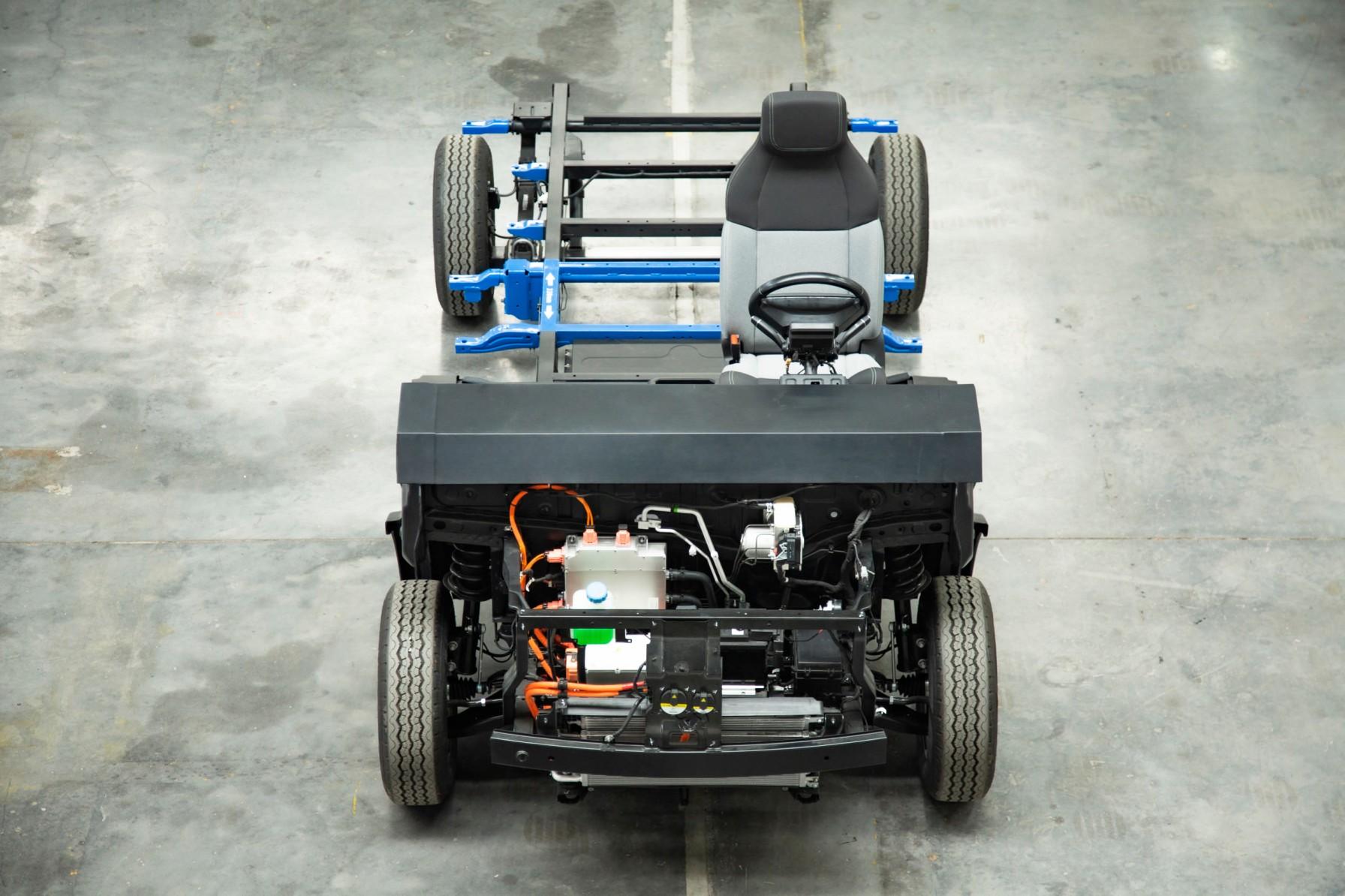

Drivable platform foundation

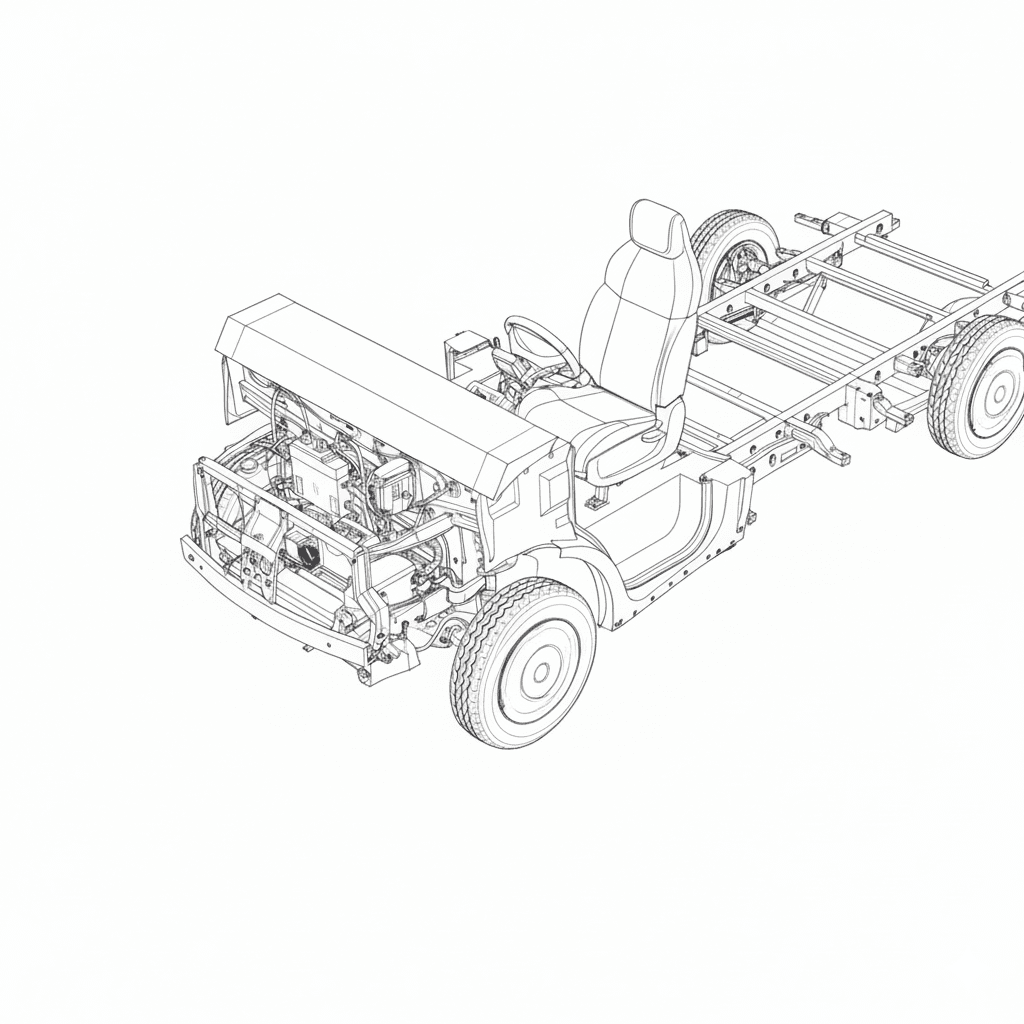

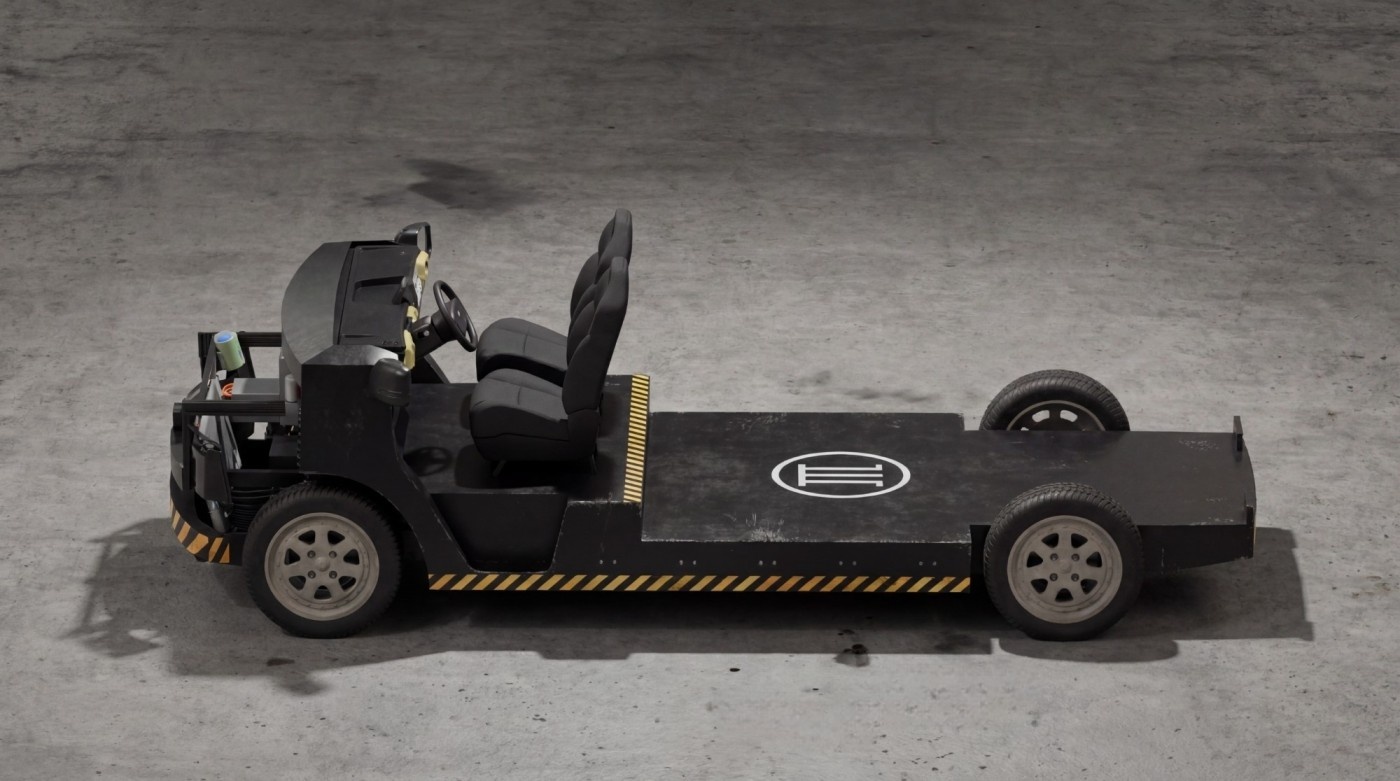

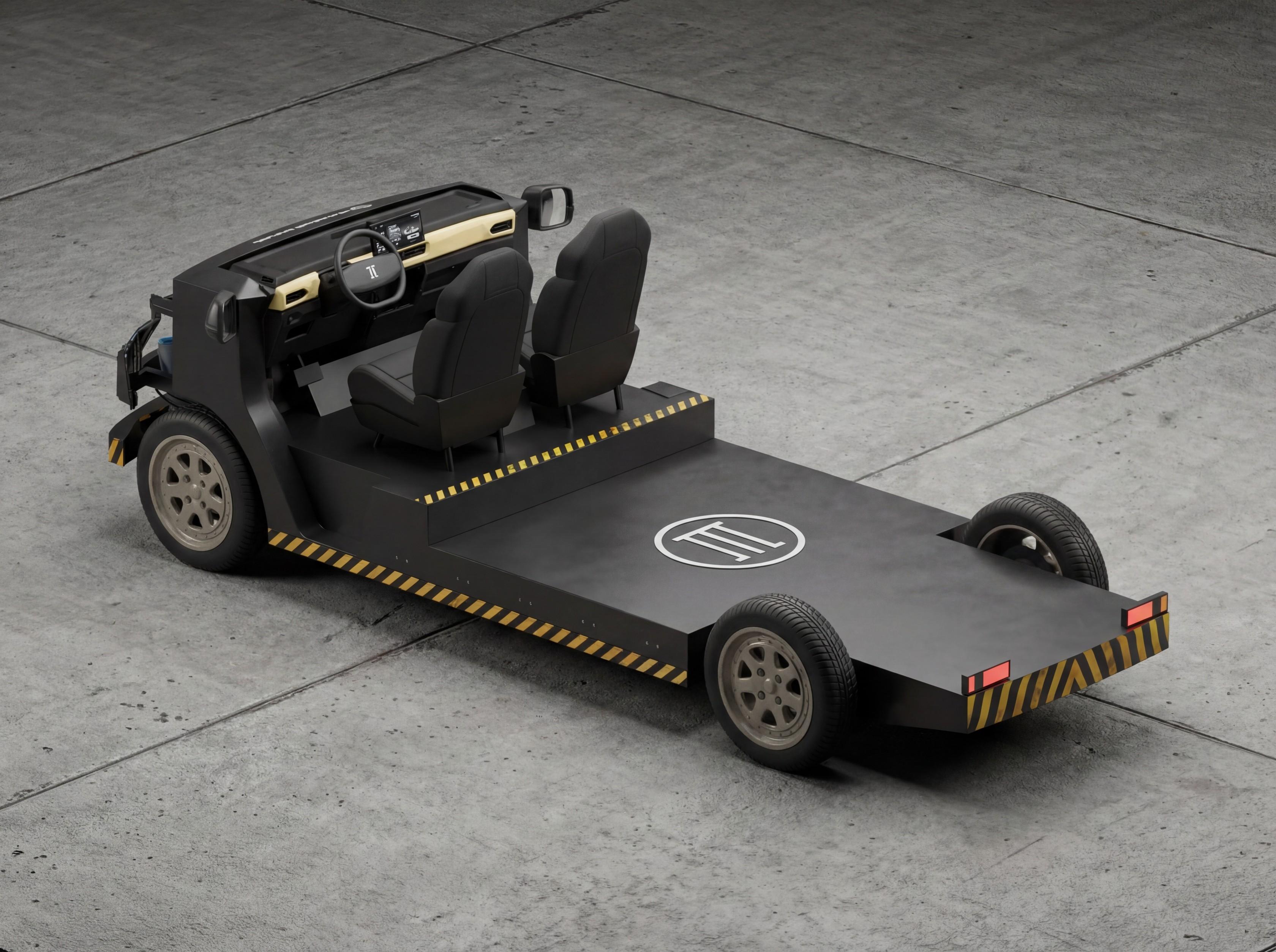

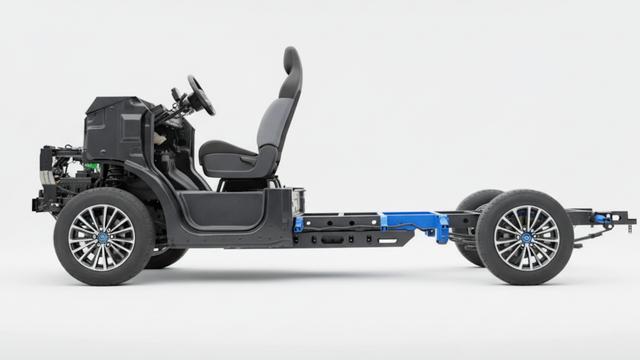

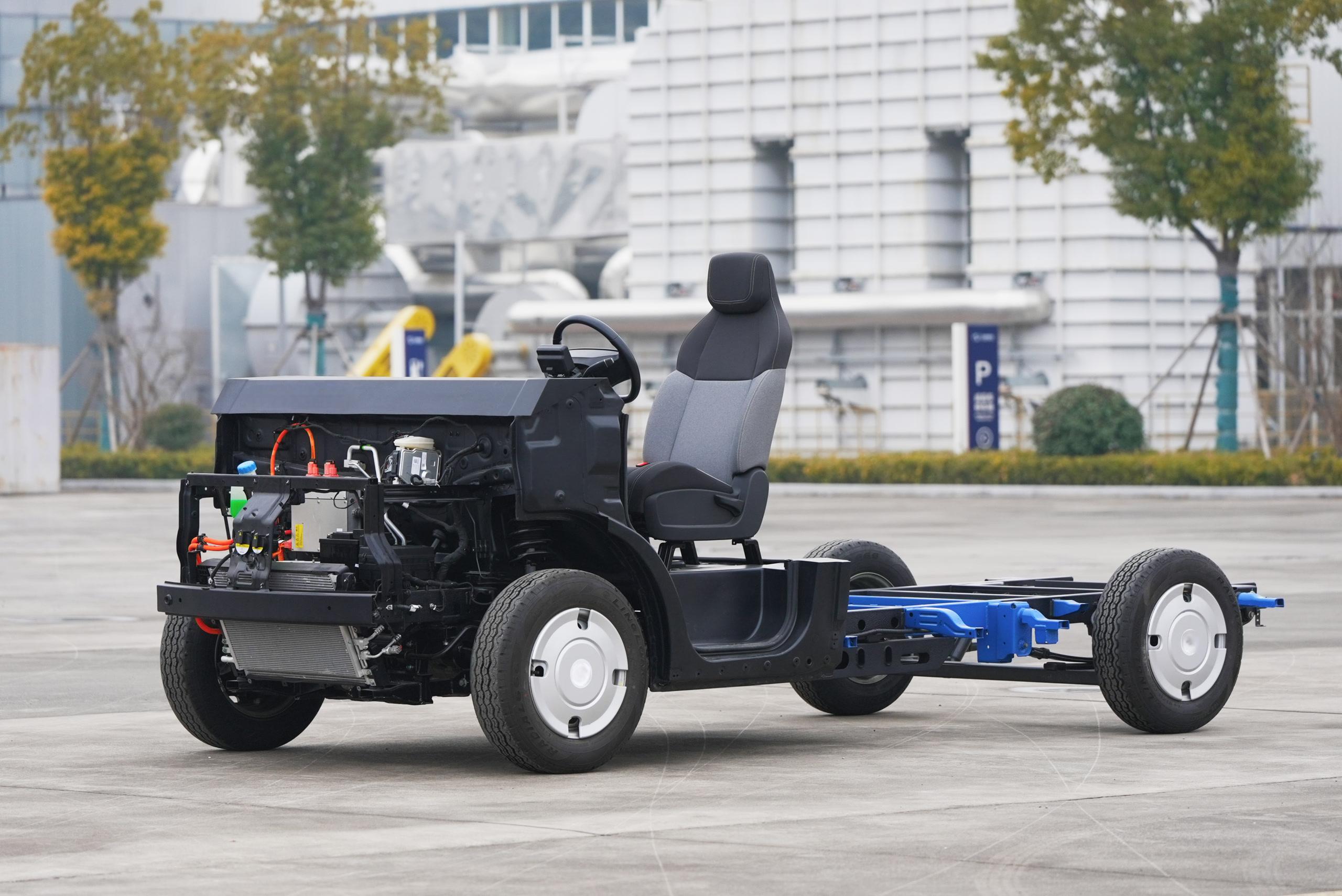

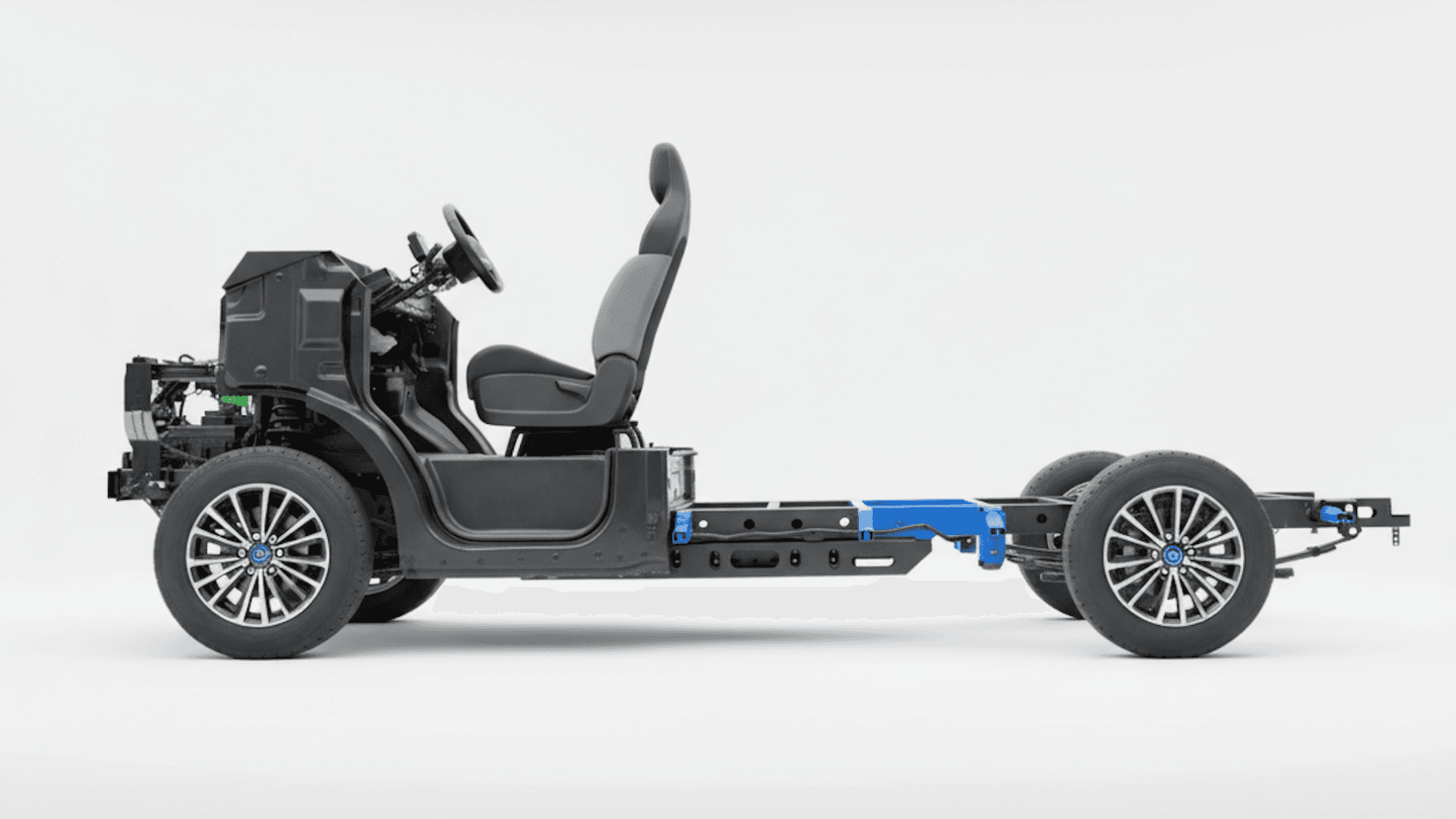

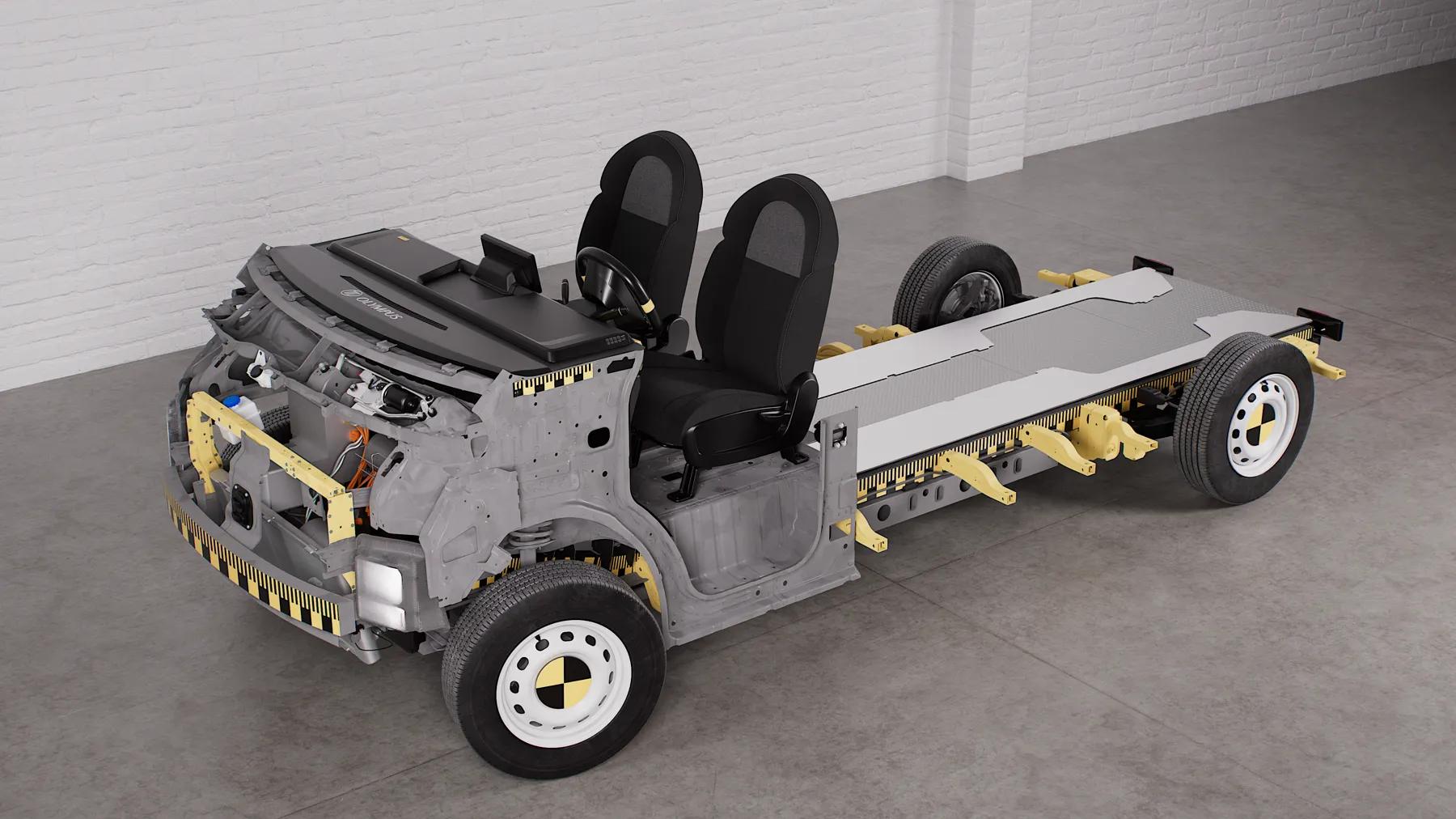

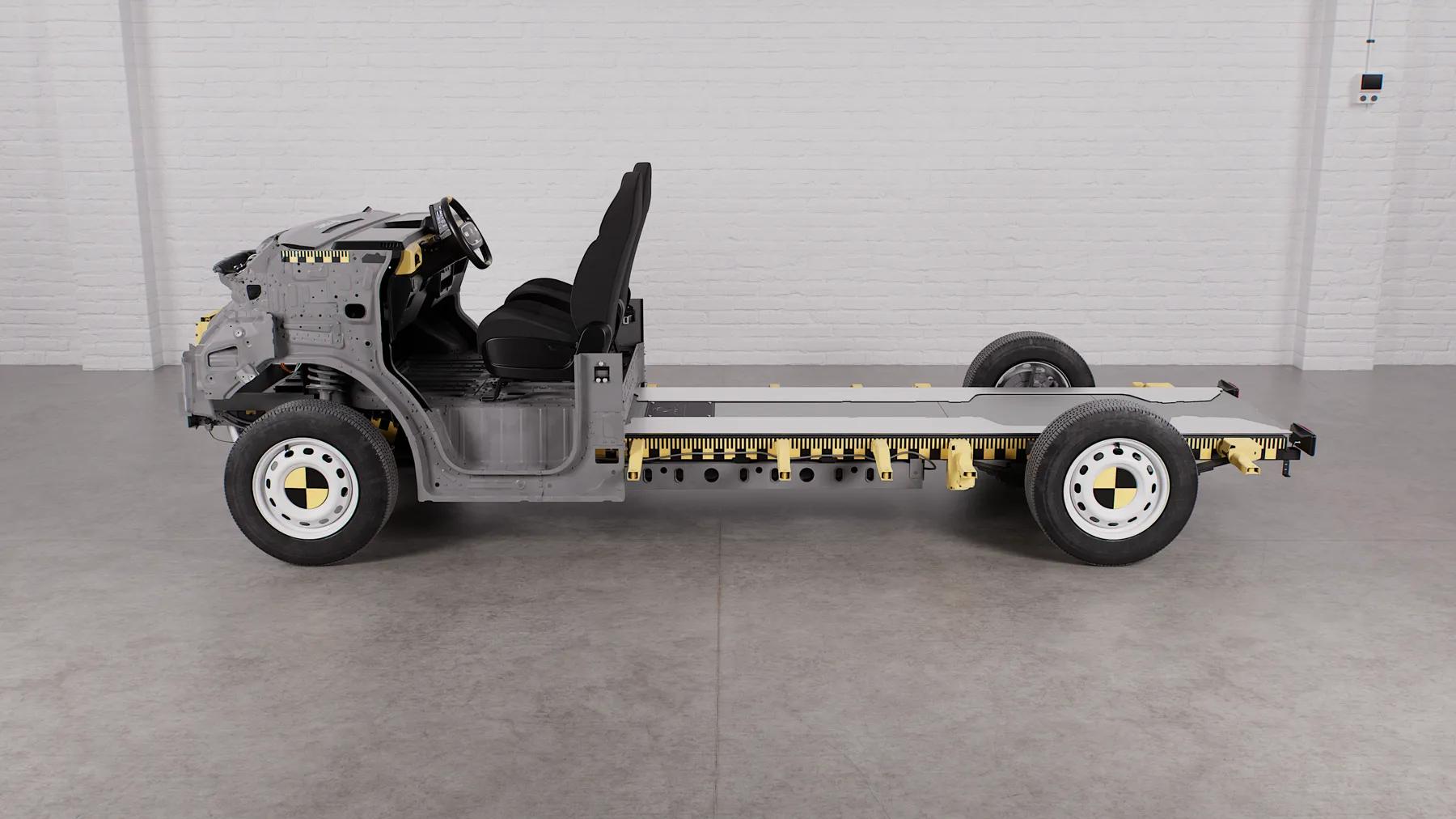

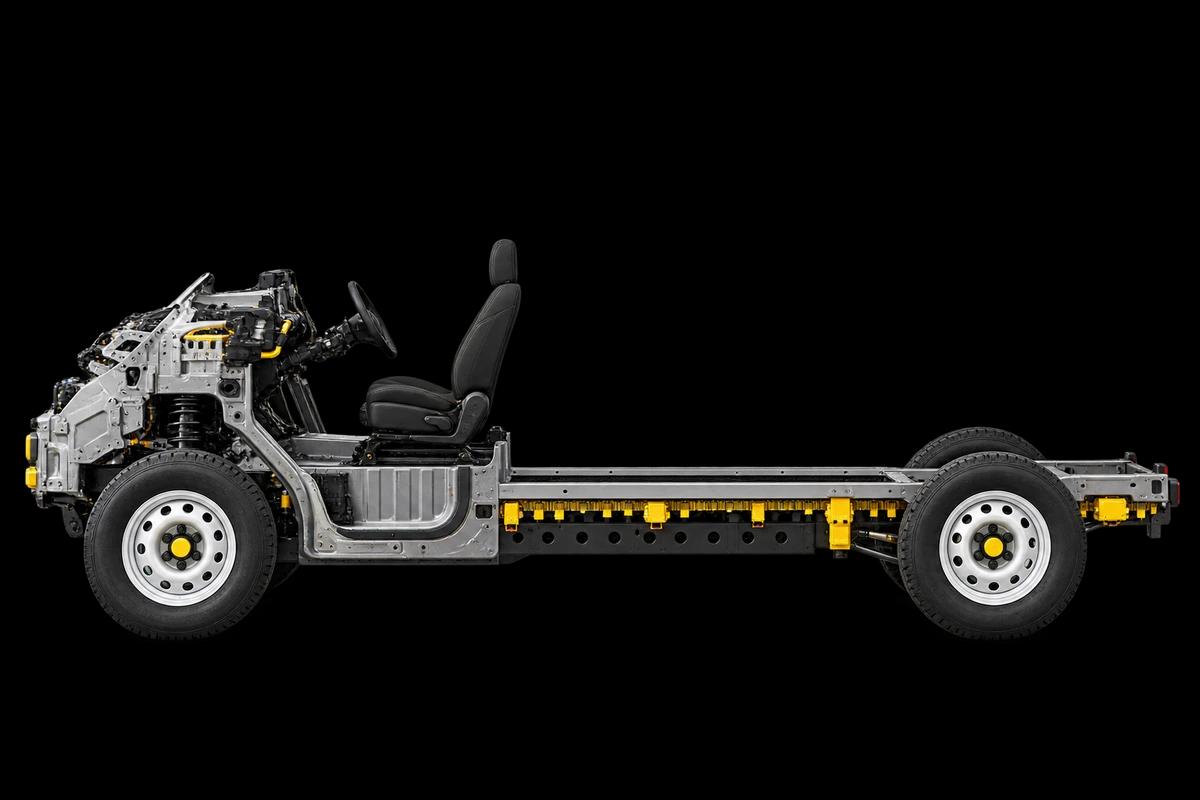

FIG. 01Olympus V3.0 / 3⁄4 front view
Open architecture. Unlimited options.
Built to be outfitted.
Platform type
Open platform
Configurable foundation
Battery
54 kWh
LFP chemistry
Peak power
148 hp / 110 kW
Integrated electric drive
Voltage architecture
400 V / 12 V
High- and low-voltage systems
Drive configuration
FWD
Front-wheel drive

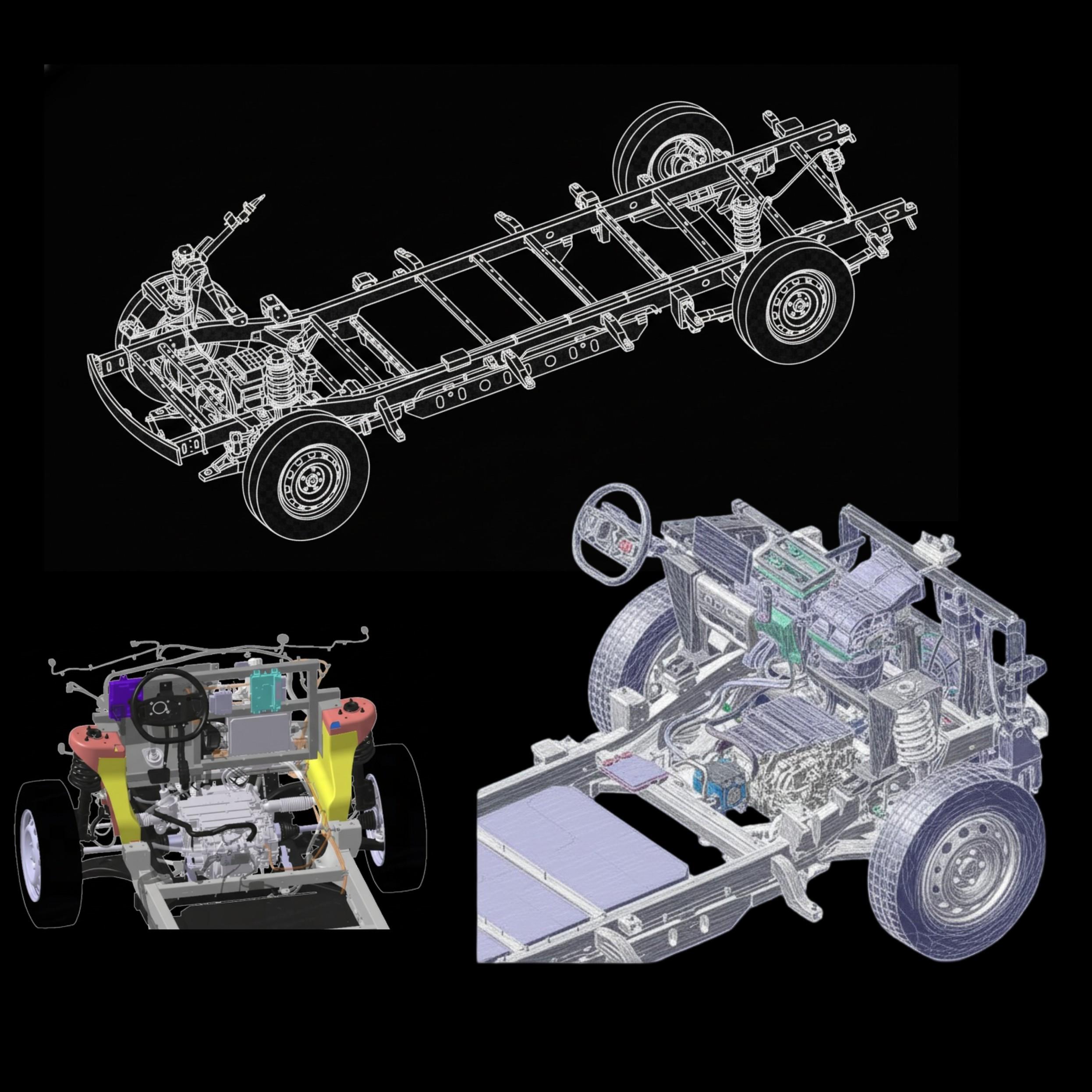

02 // Platform overview
One Platform. Unlimited Options.

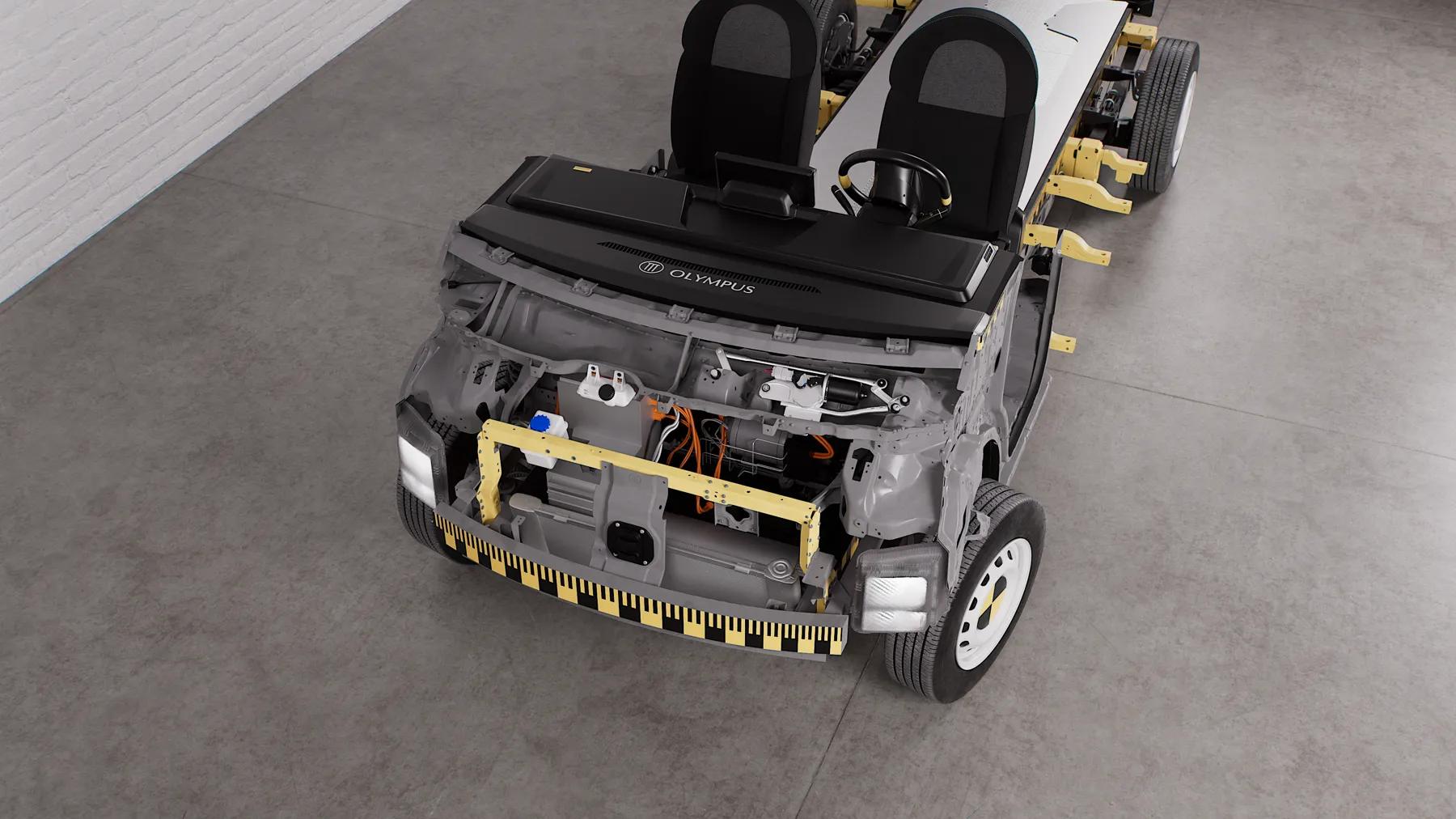

A complete EV foundation with integrated systems and an architecture designed to accept the vehicle you need to build.
03 // Application architecture

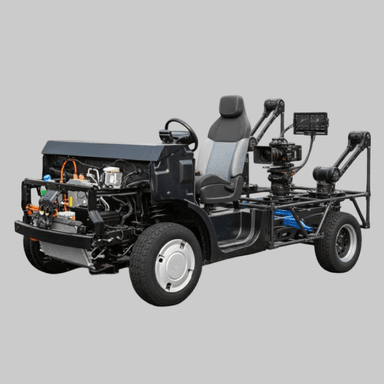

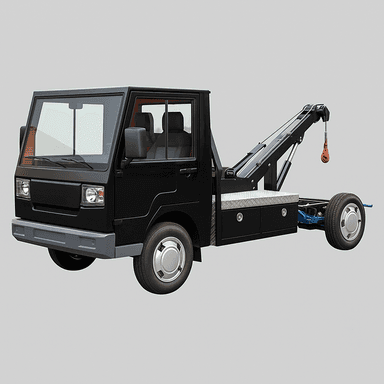

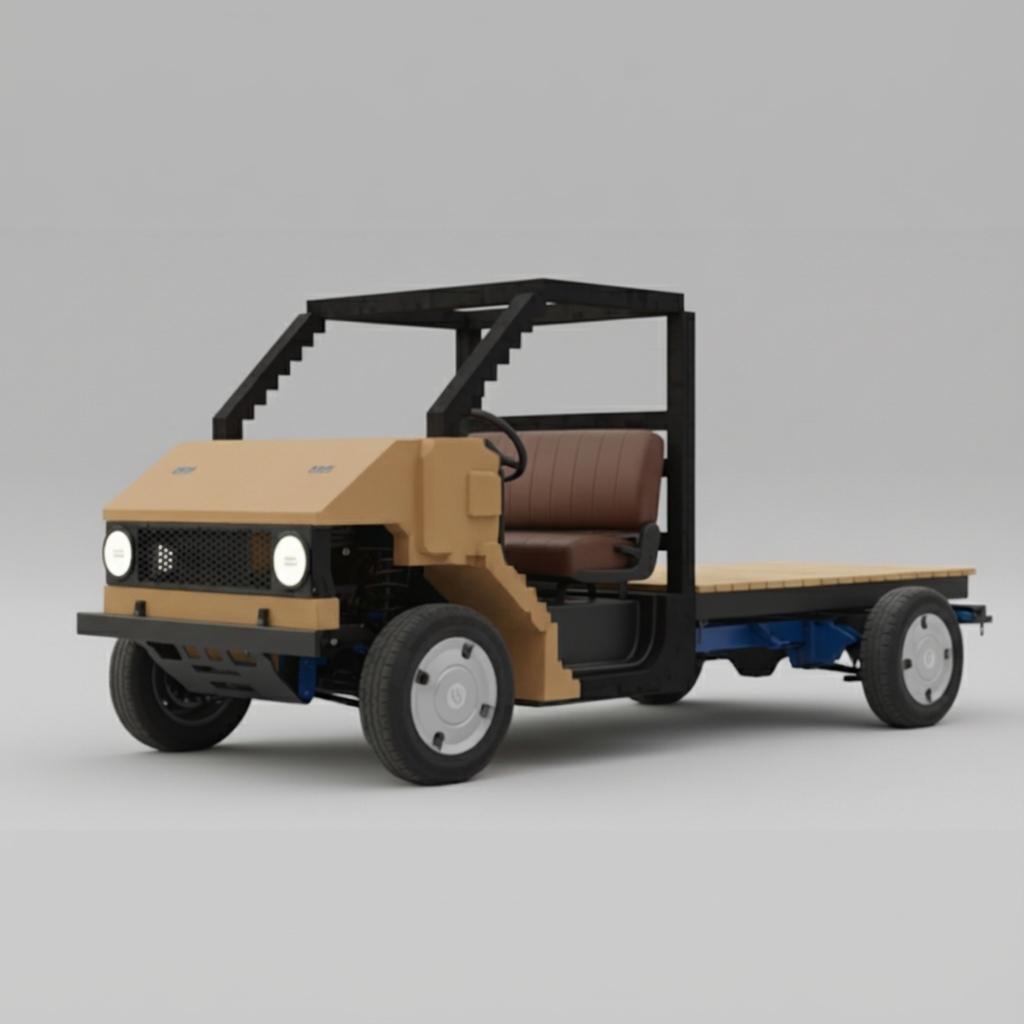

Purpose-Built Work Platforms.

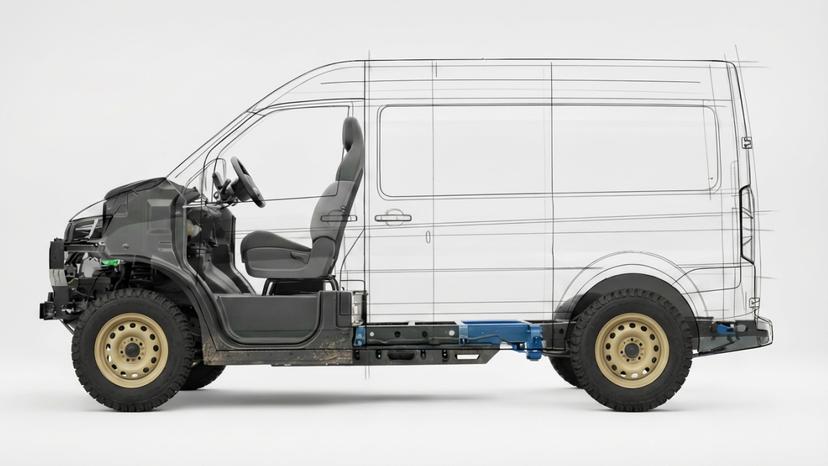

Configure the foundation around a broad range of body styles, businesses, and working environments.
Skip to configure your platformOlympus Platform V3 // Open · Scalable · Proven

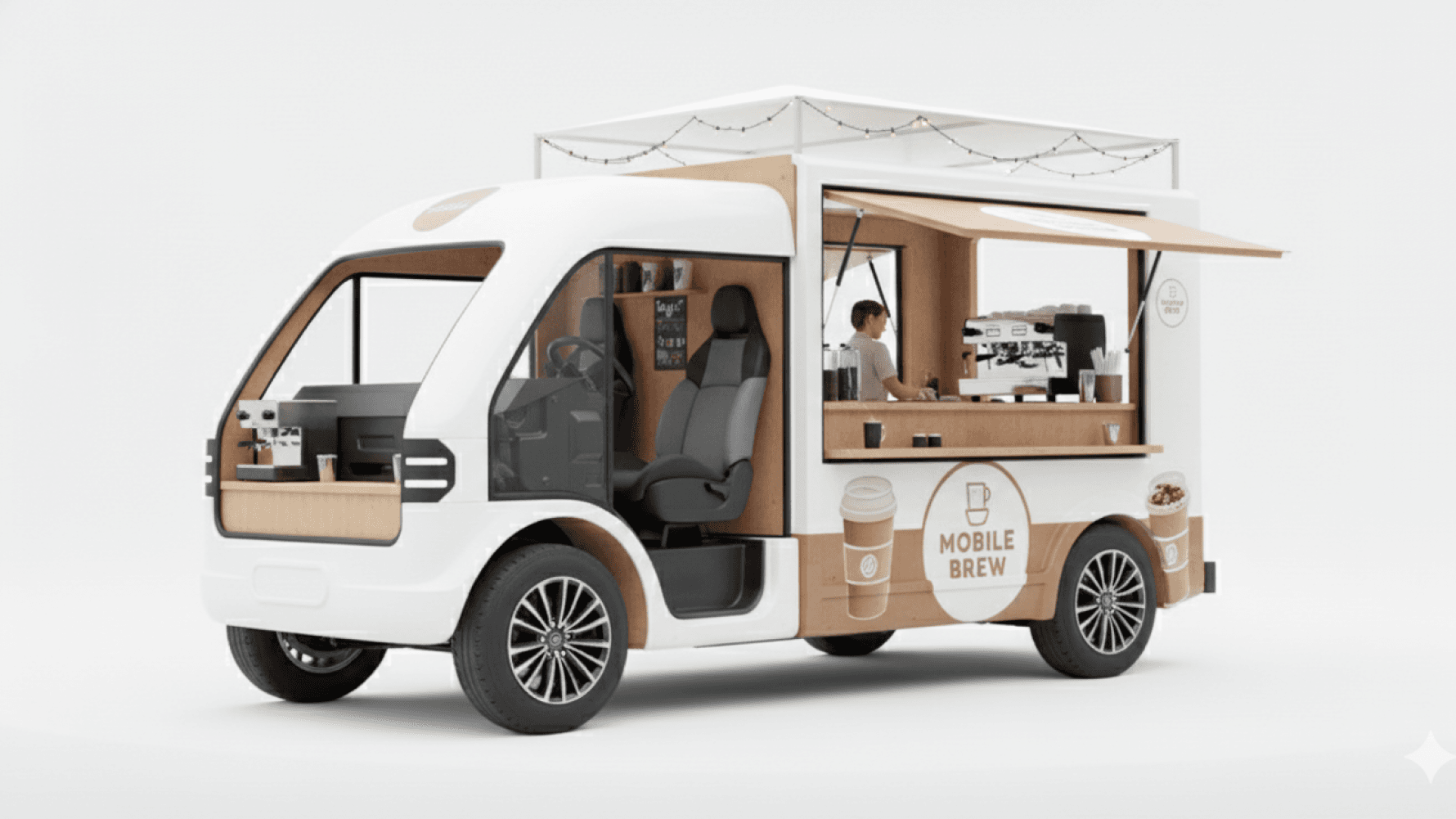

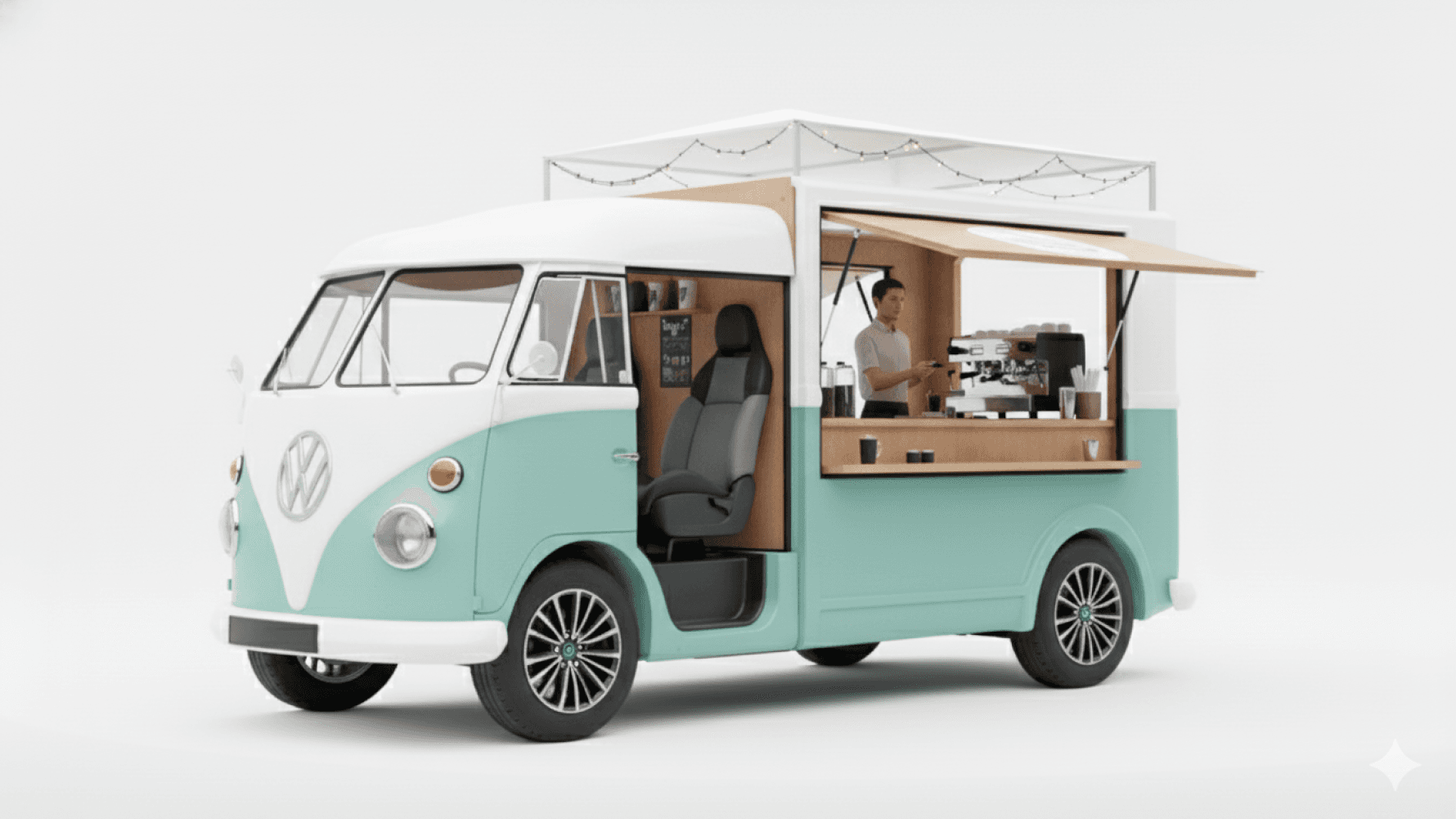

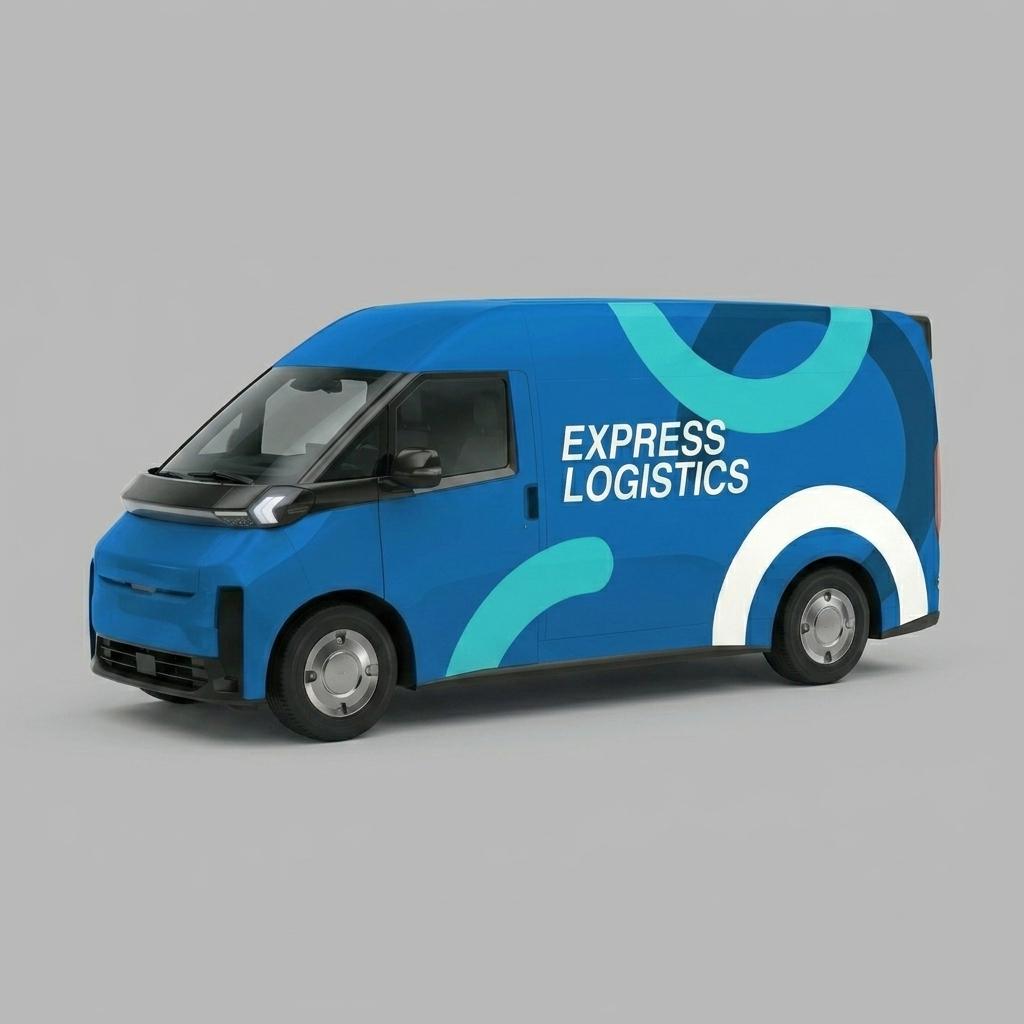

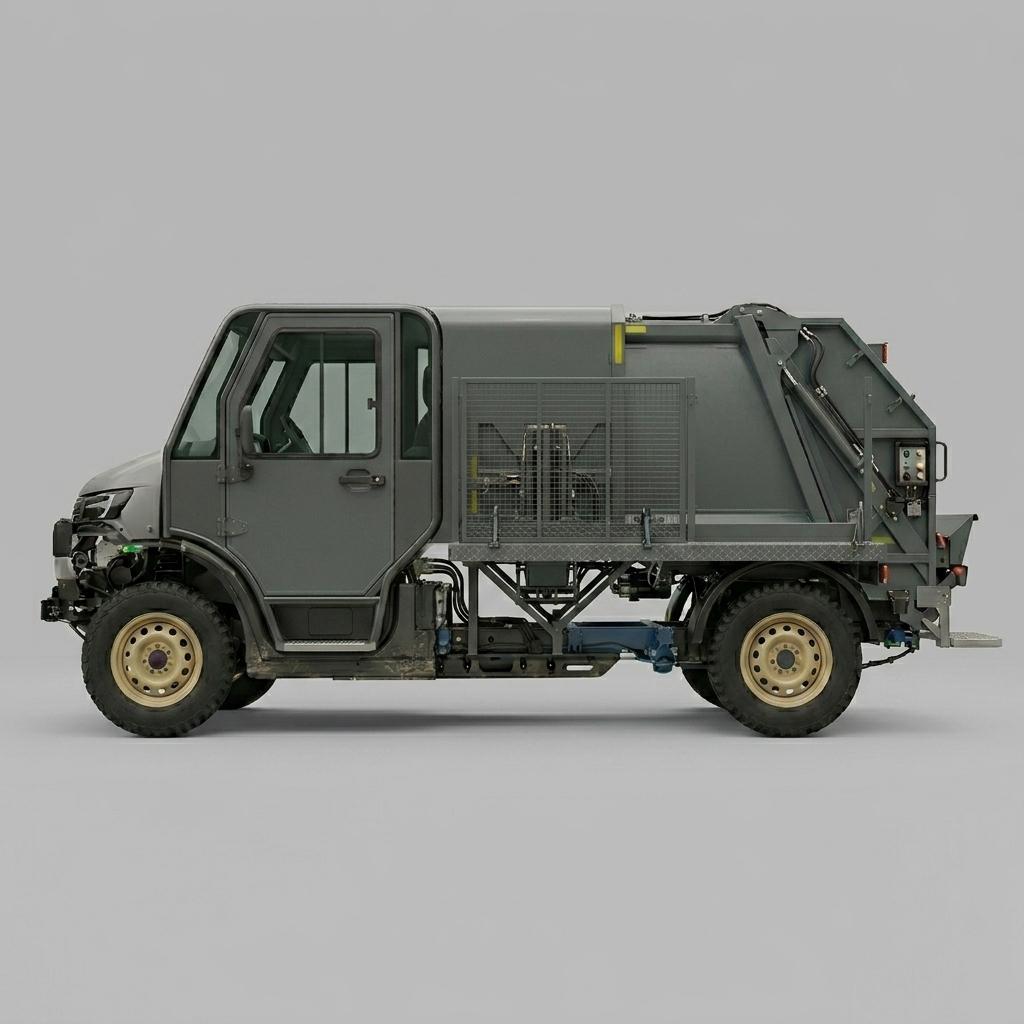

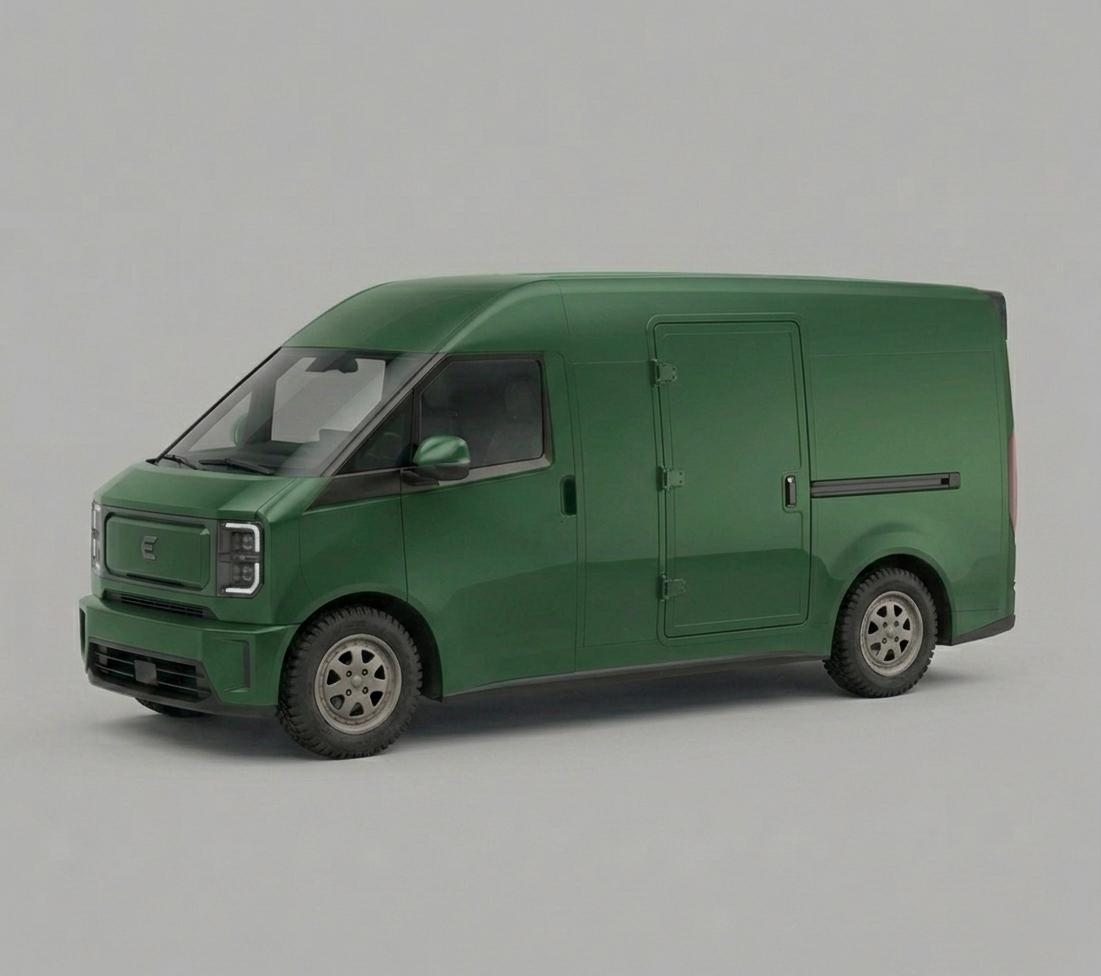

Commercial / retail
Mobile businesses and fleets
- Food and beverage
- Mobile shop

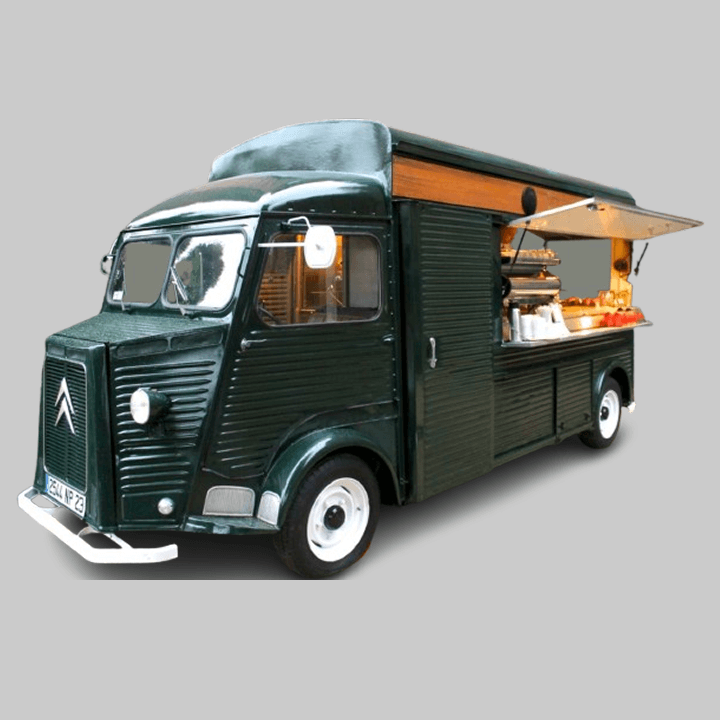

- Workstation

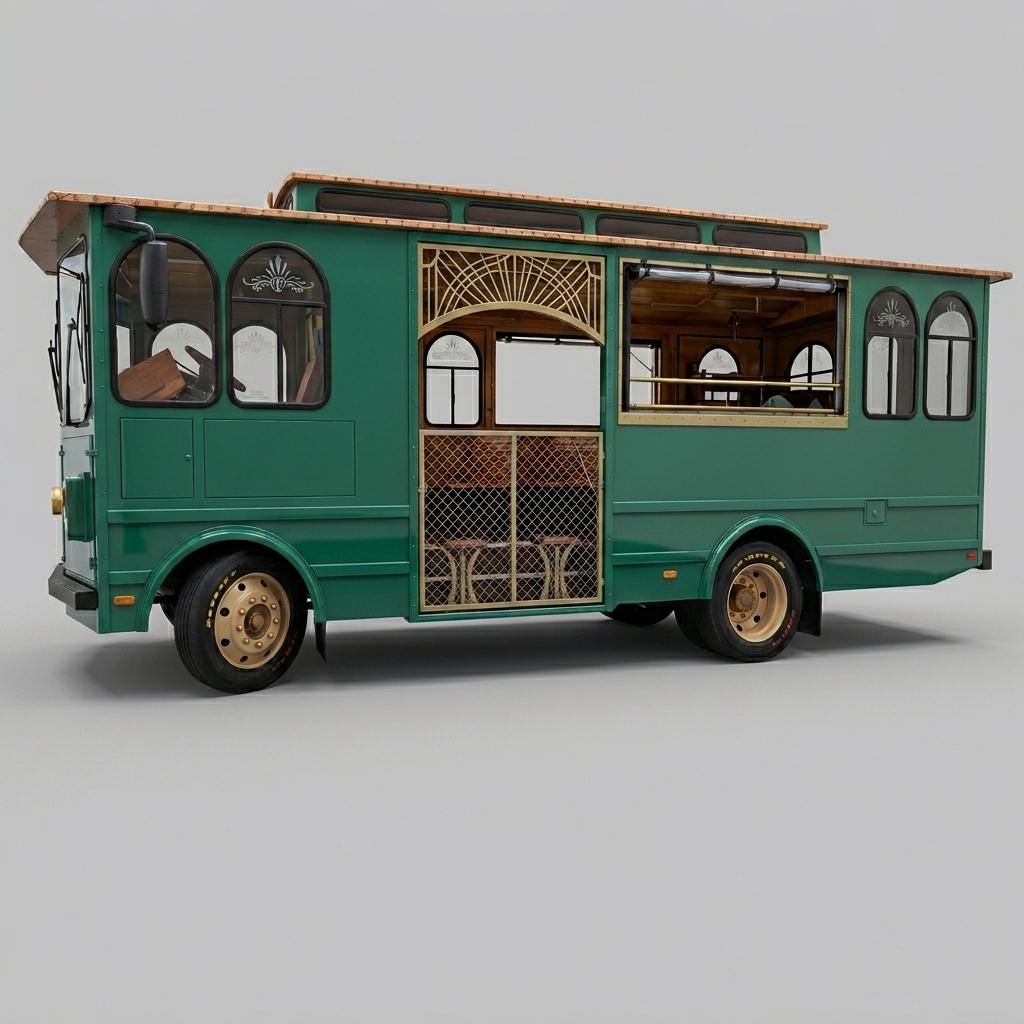

- Hospitality

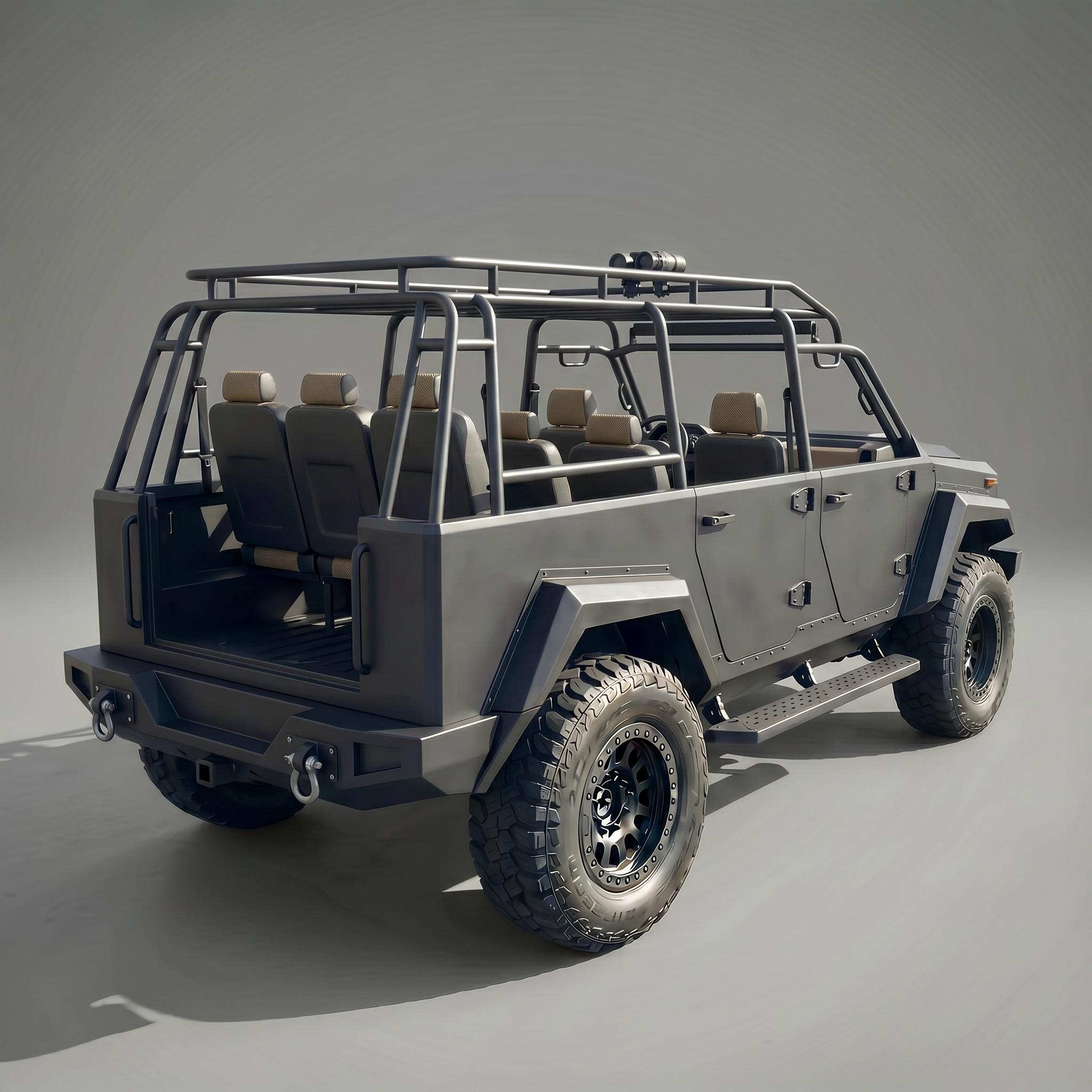

- Golf resorts
- Specialty fleet
Industrial+
Purpose-Built Work Platforms
- Factory and warehouse
- Agriculture
- Parks and Grounds

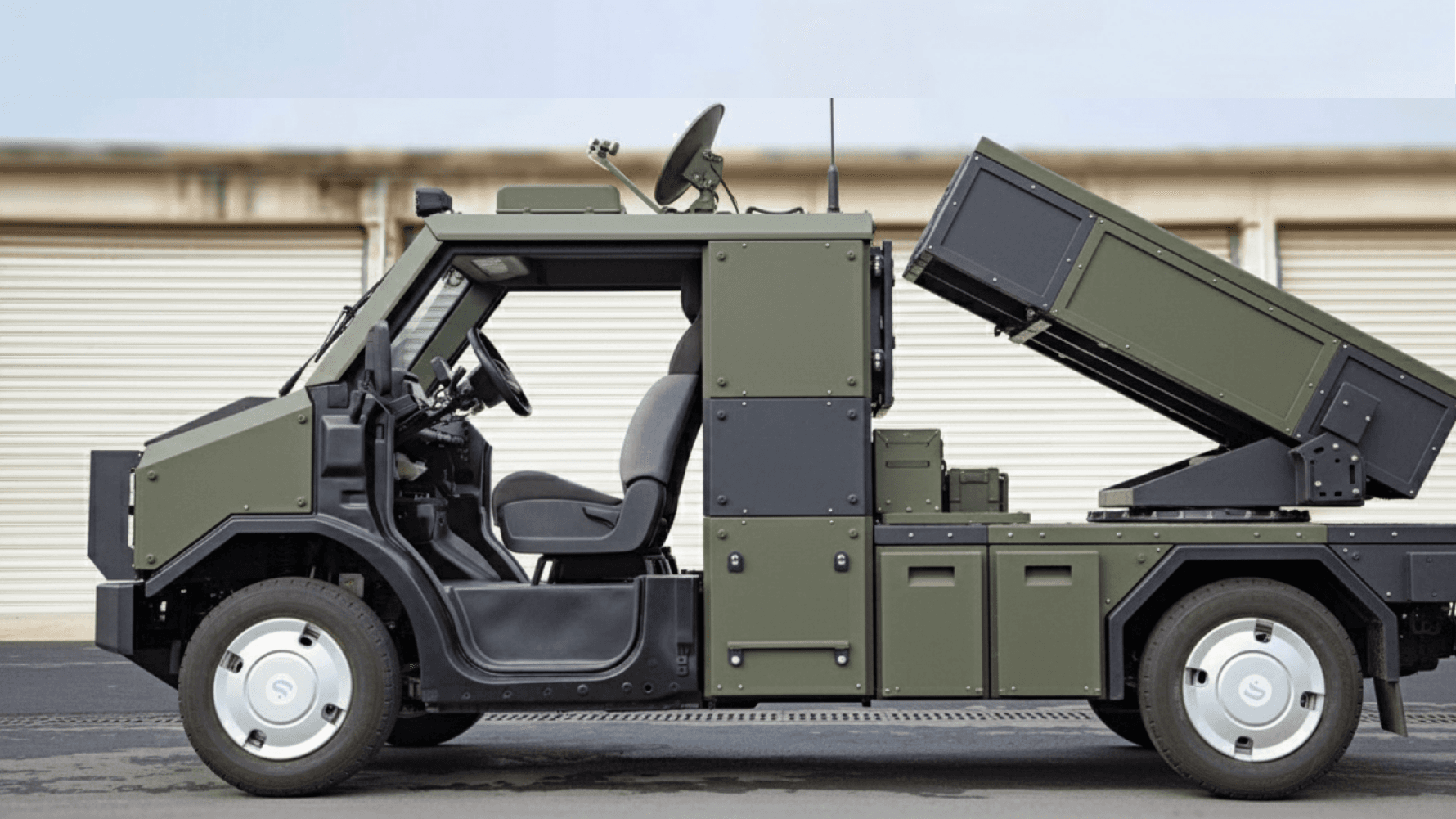

- Drone / Ground Release System
- Mining

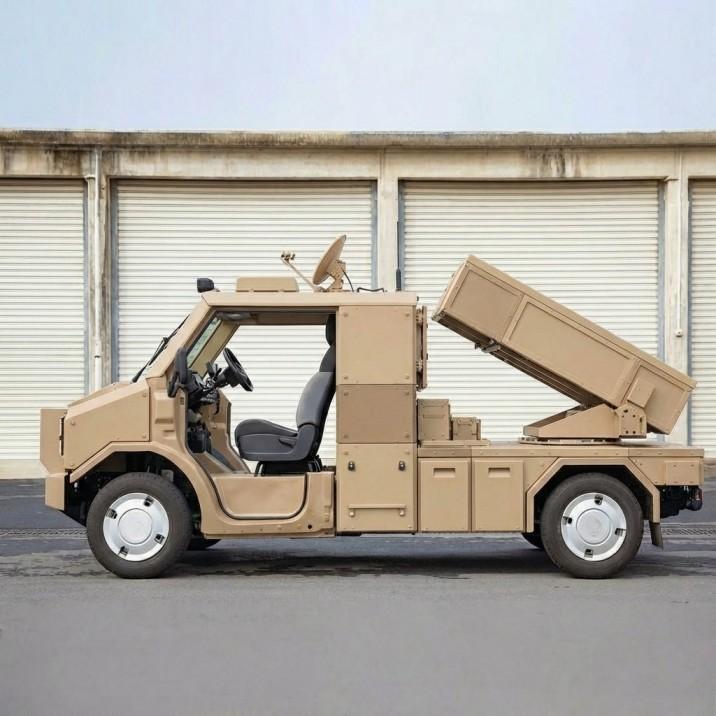

- Specialty Vehicles
Application examples illustrate potential use cases; project compatibility is confirmed during configuration.
04 // How it works
Three steps to your EV.
A direct path from platform selection to an integrated, deployable vehicle.
01

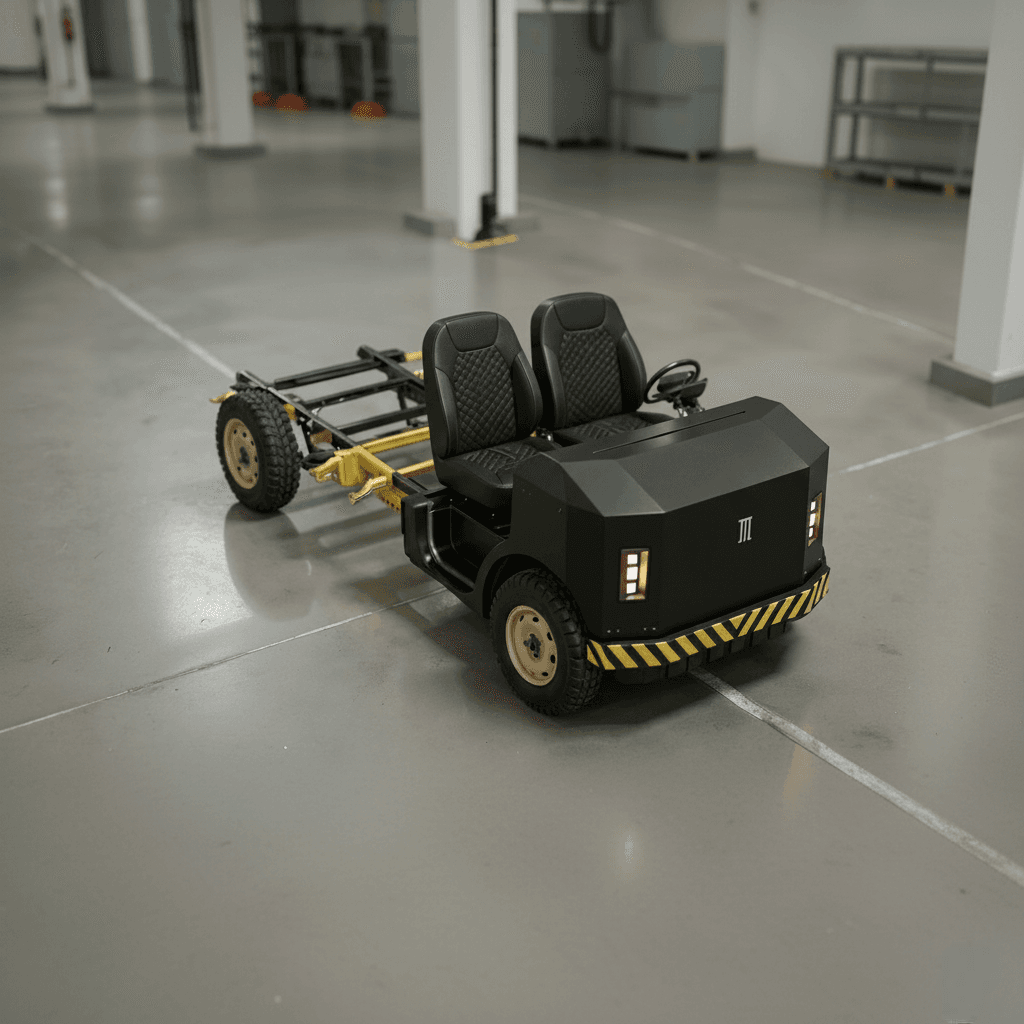

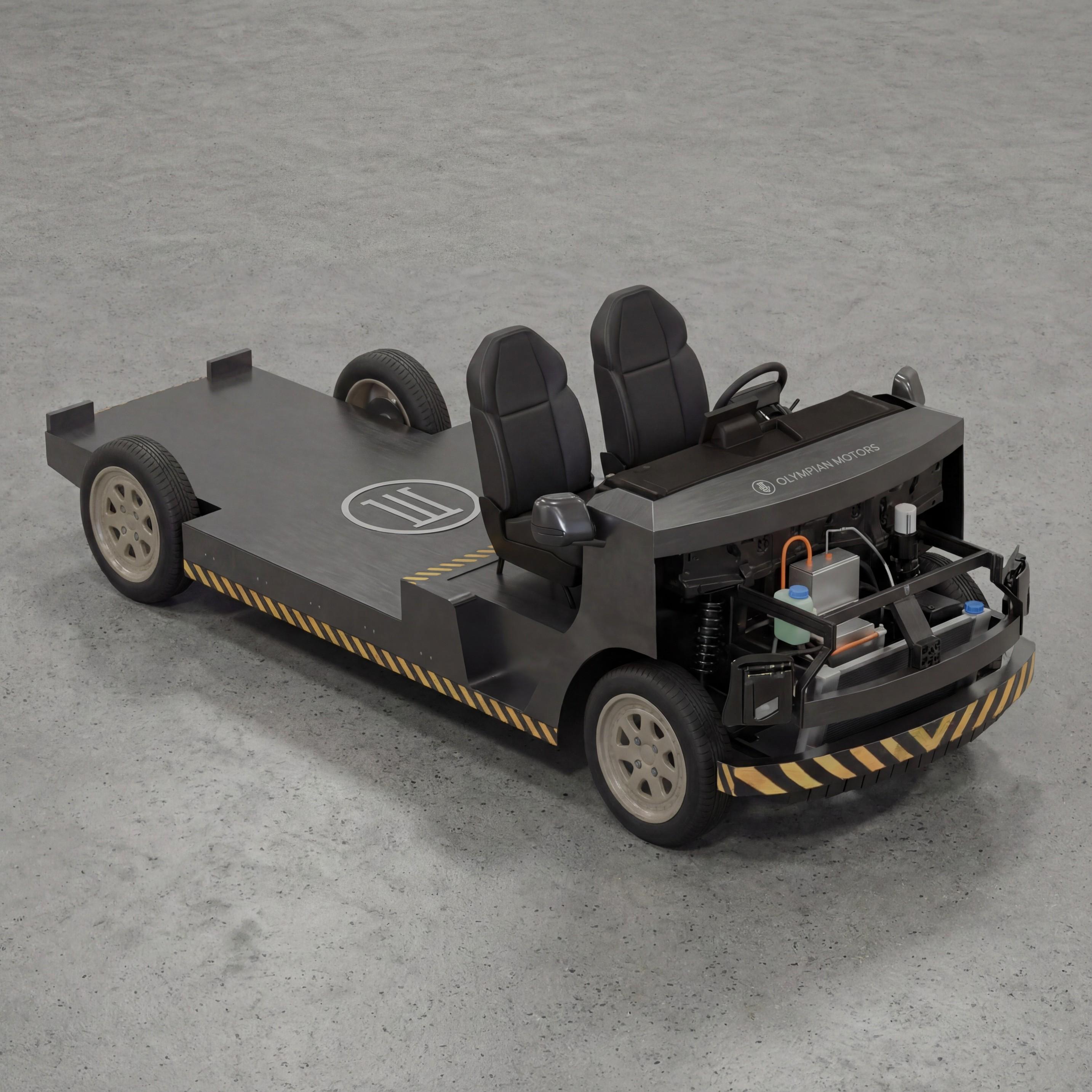

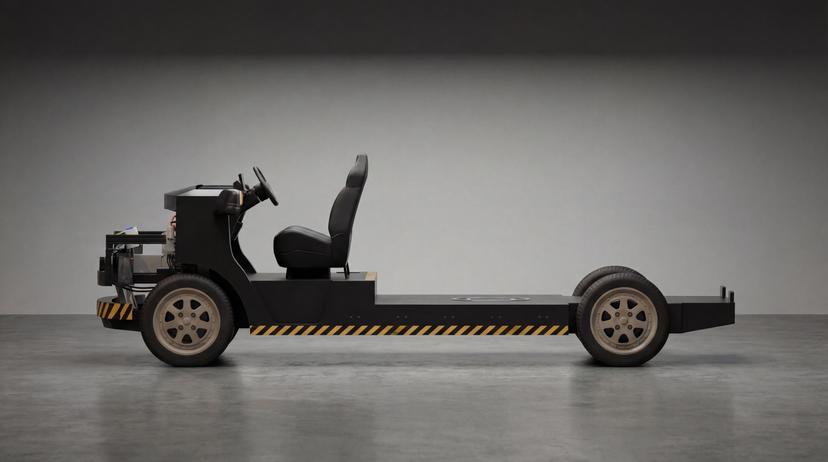

Select the base kit
Choose the platform configuration and battery option that fit the build.
02
Design the vehicle
Develop the body, interior, features, and application around a proven foundation.
03
Build and deploy
Integrate the design, complete the build, and move from prototype to the road.
05 // Platform programs
Pricing.
Three paths for individual builds, advanced development, and specialized programs.
01
$37,500

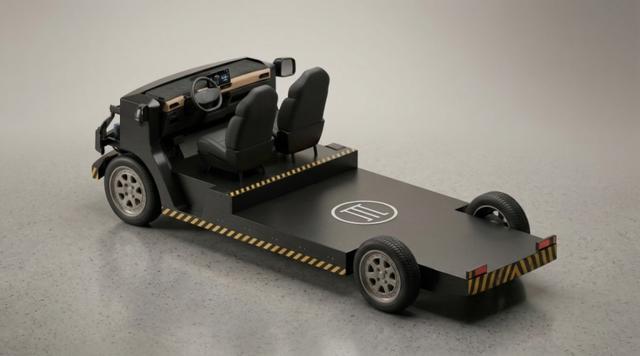

Standard
A complete platform foundation for a focused vehicle build.

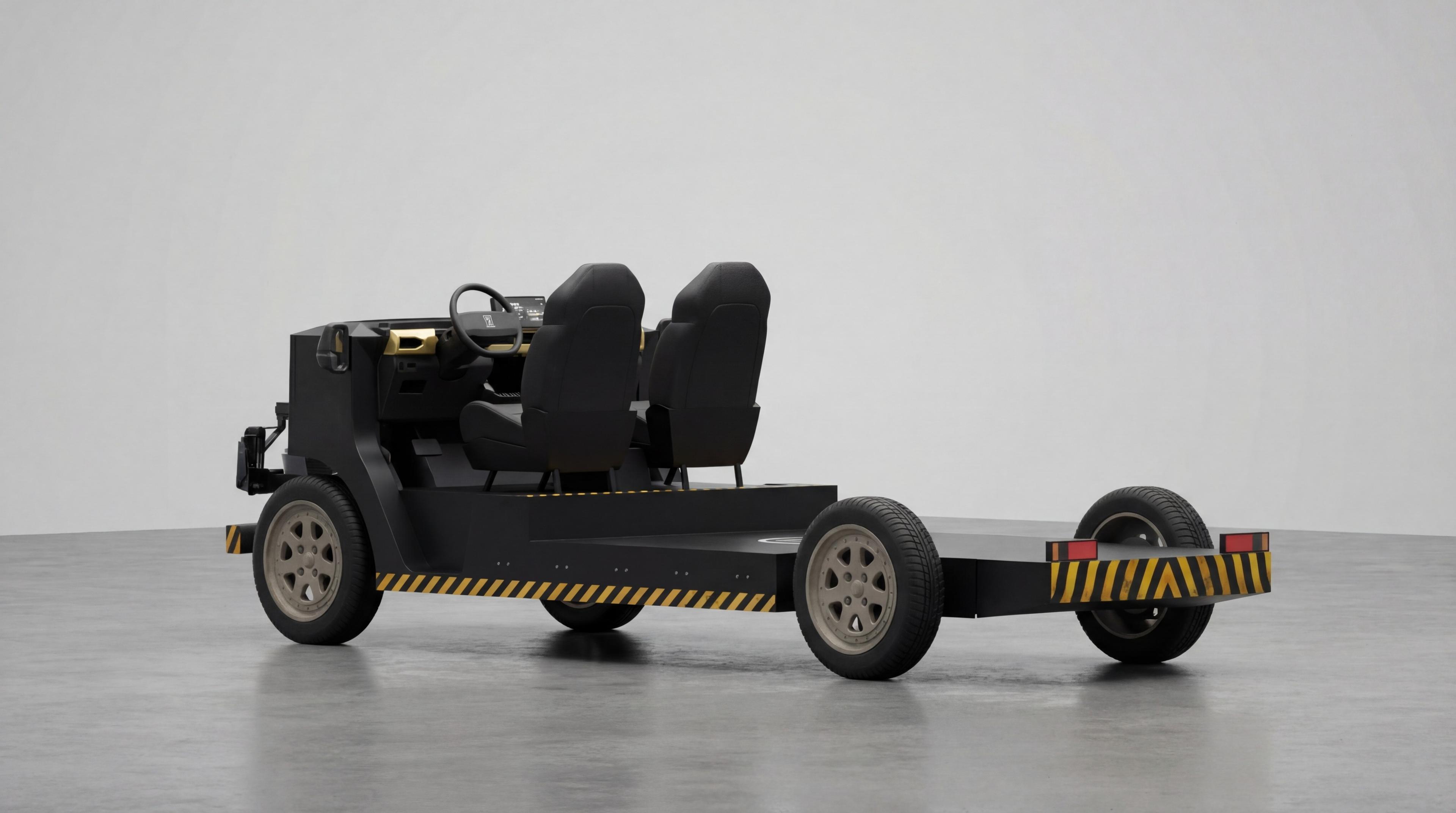

- Ready-to-drive platform
- 3D design data
- Assembly / outfitting instructions manual
02Suggested
$49,500

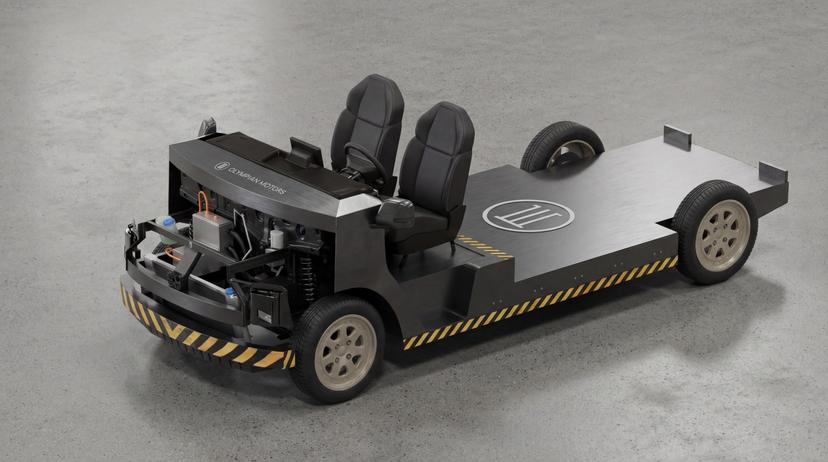

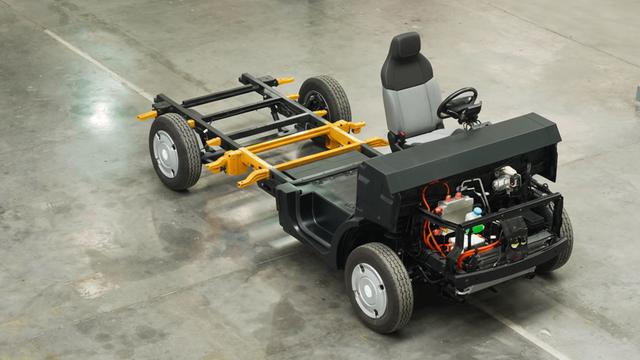

Developer
Expanded access and support for advanced development programs.
- Everything in Standard
- Developer integration package
- CAN / Bluetooth support
- Engineering collaboration
03
Consultation
Custom / OEM
A collaborative program for specialized and volume applications.
- Configuration review
- Volume programs
- Joint development
- Technical partnership

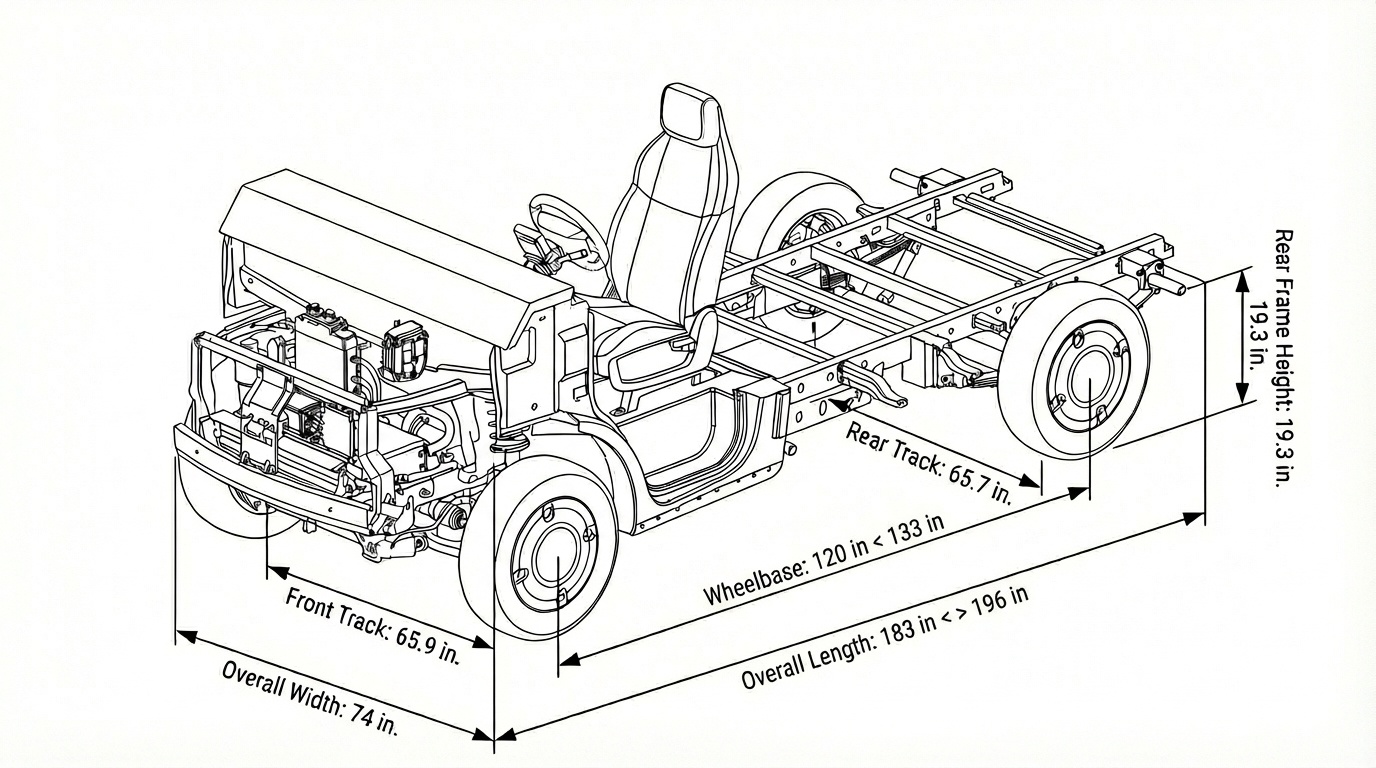

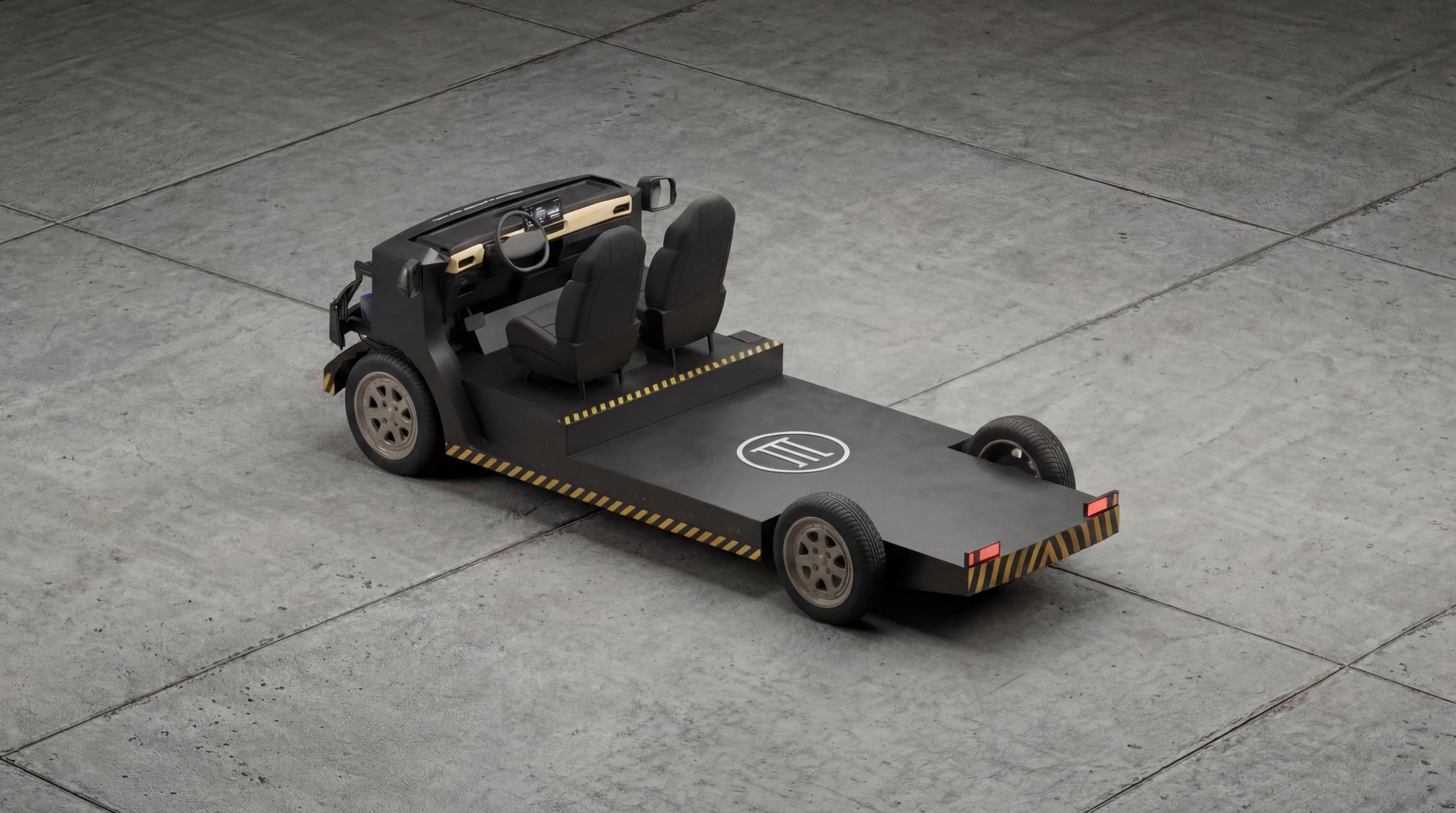

06 // Technical data

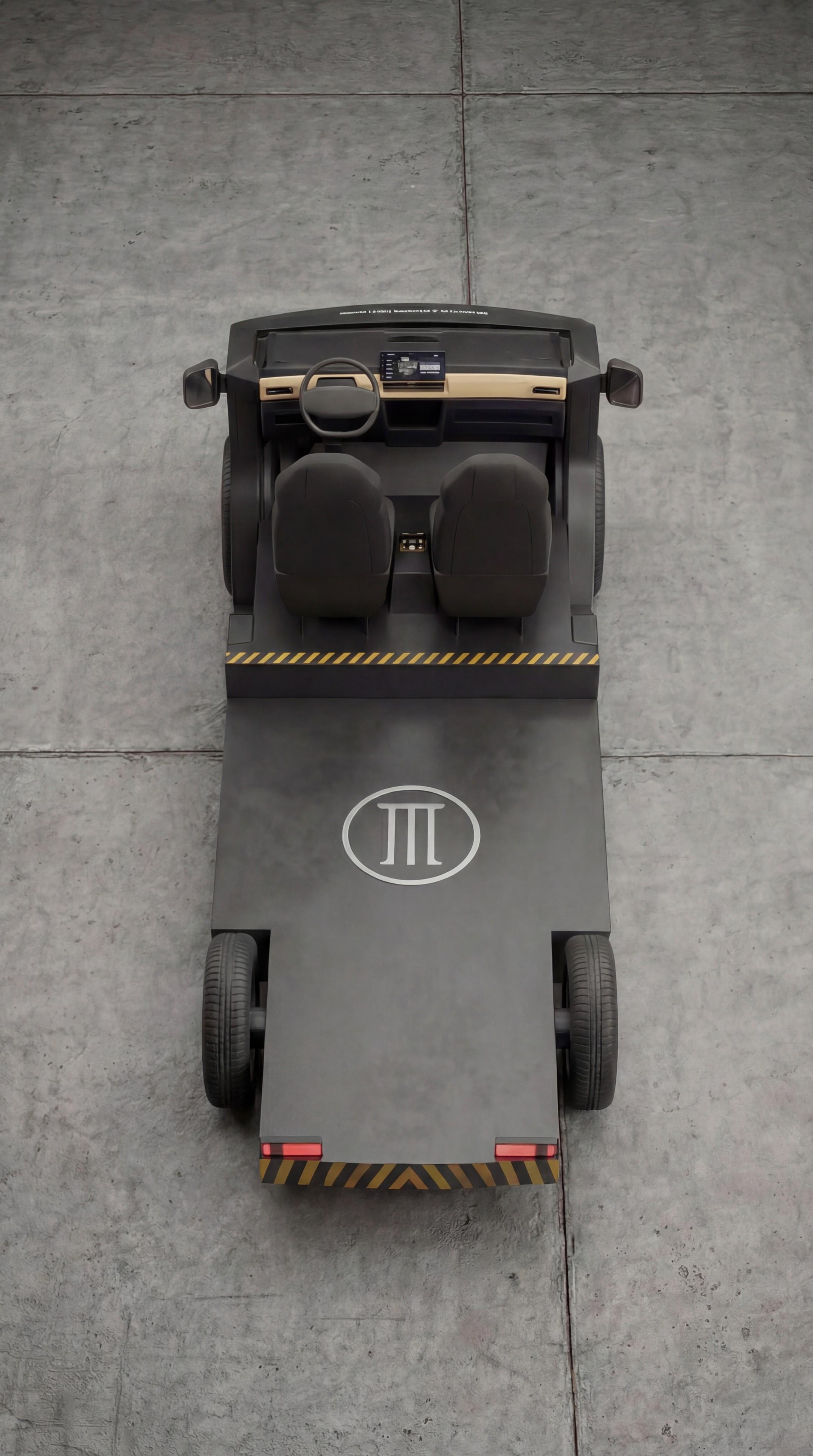

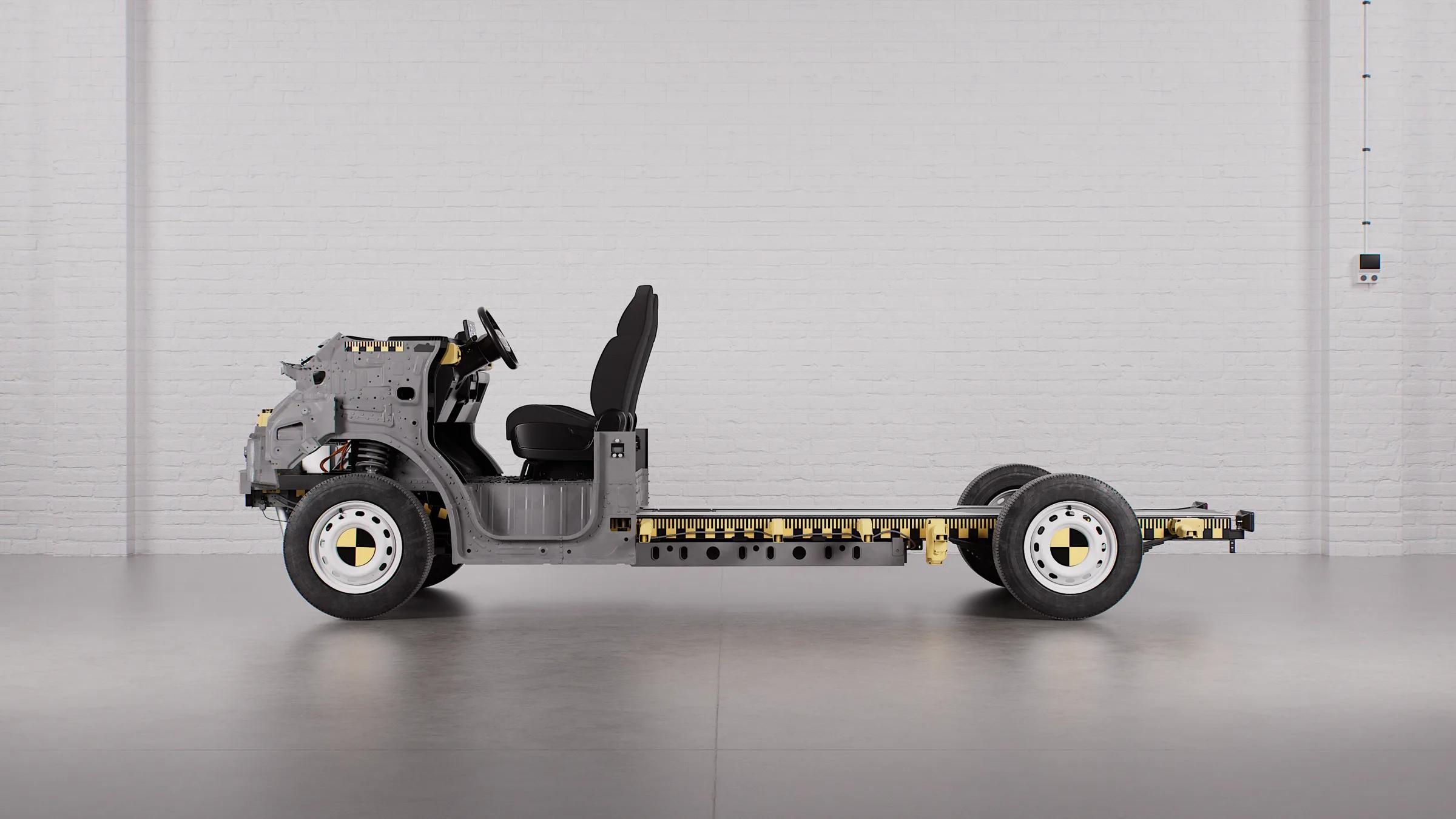

The platform, specified.
Verified Olympus Open Platform Kit specifications presented alongside the platform’s principal views.

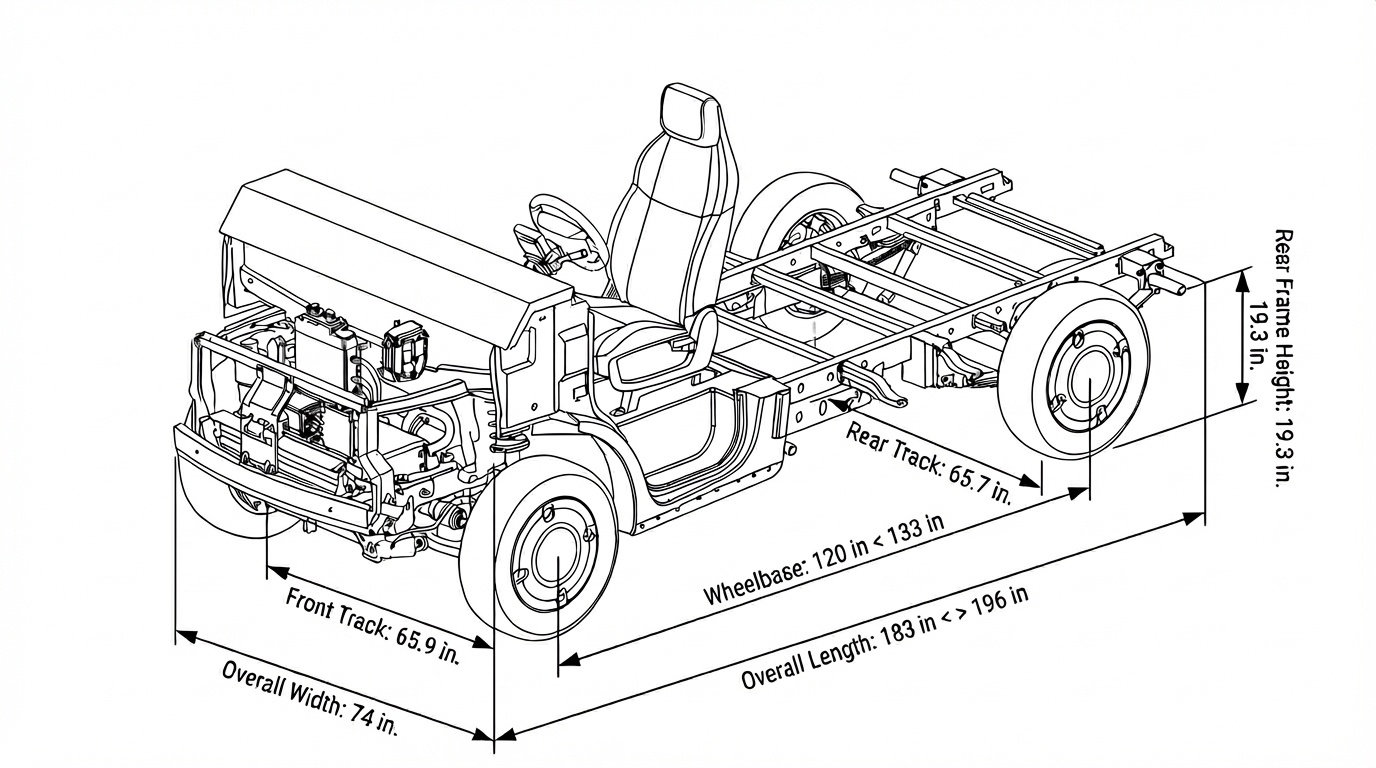

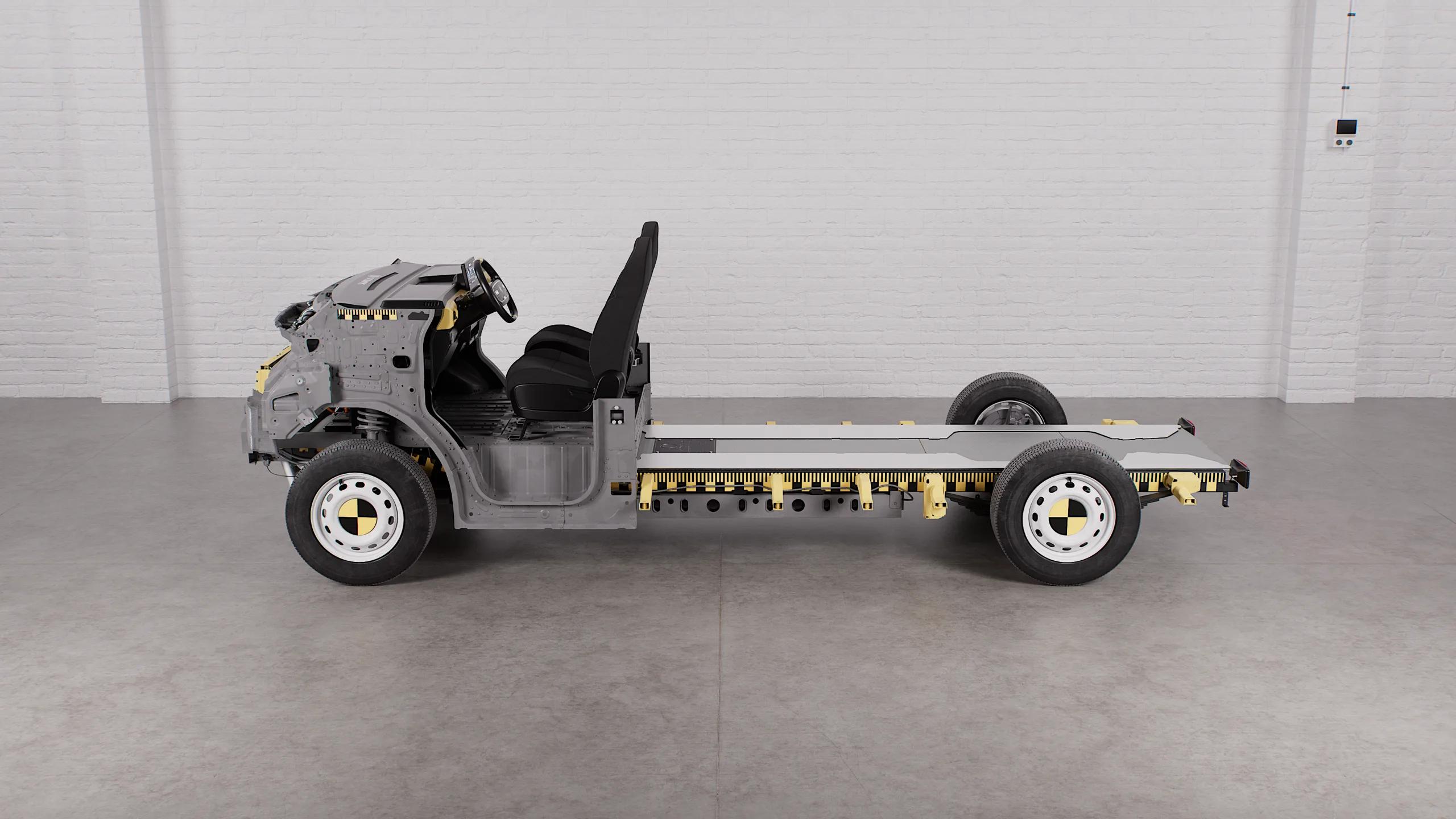

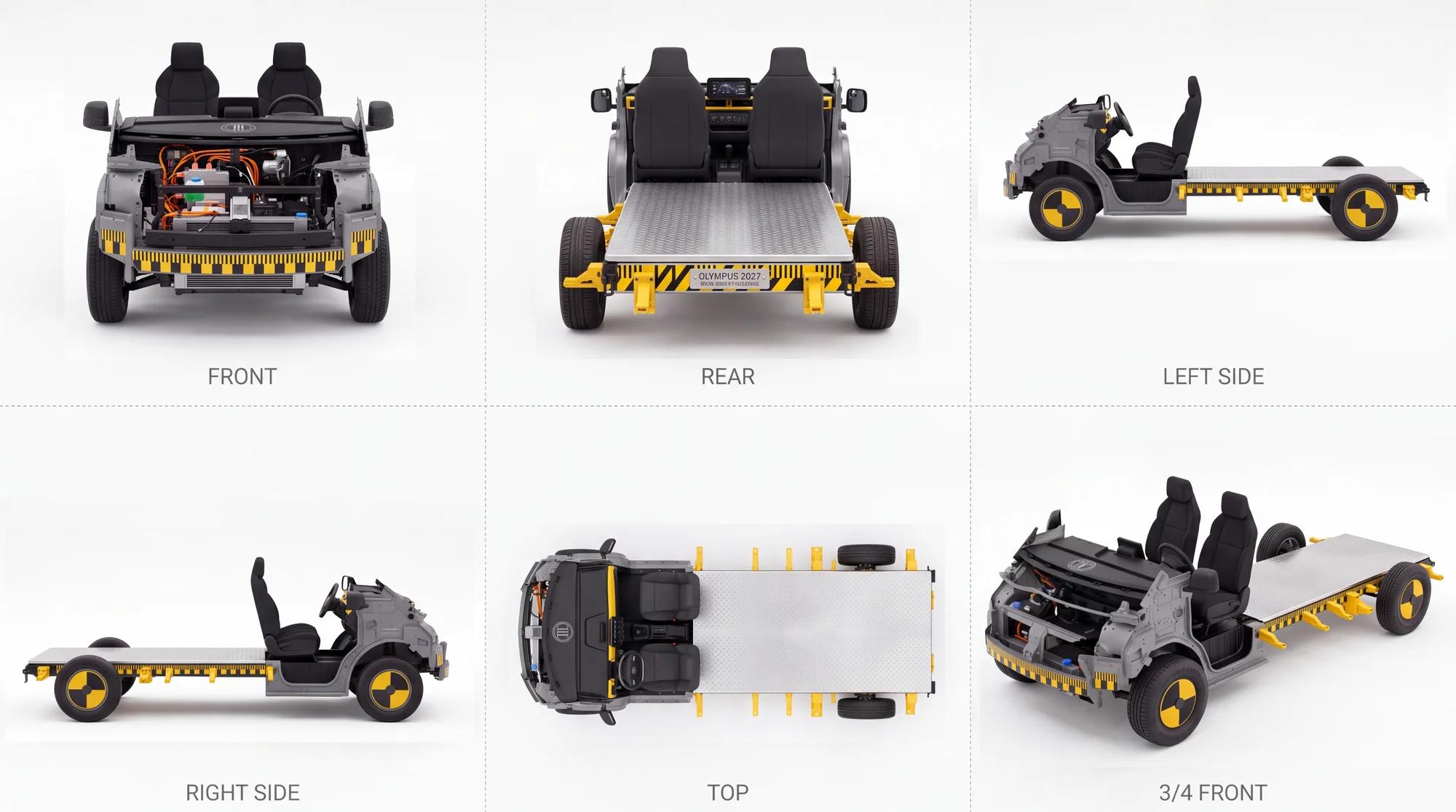

Olympus technical libraryPlate 08 / Rev. 3.0
- Maximum design weight
- 3,490 kg / 7,694 lb (including chassis)
- Battery capacity
- 54 kWh (LFP)
- Wheelbase
- 3,380 mm
- Chassis weight
- 1,051 kg / 2,317 lb
- DC charging time
- 30–80% in under 0.5 hours
- AC charging time
- 8.3 hours
- Battery thermal management
- Heating device
- High-voltage platform
- 400 V
- Low-voltage platform
- 12 V
- Drive type
- FWD
- Peak power
- 148 hp / 110 kW
- Peak wheel torque
- 2,061 lb-ft / 2,785 N·m

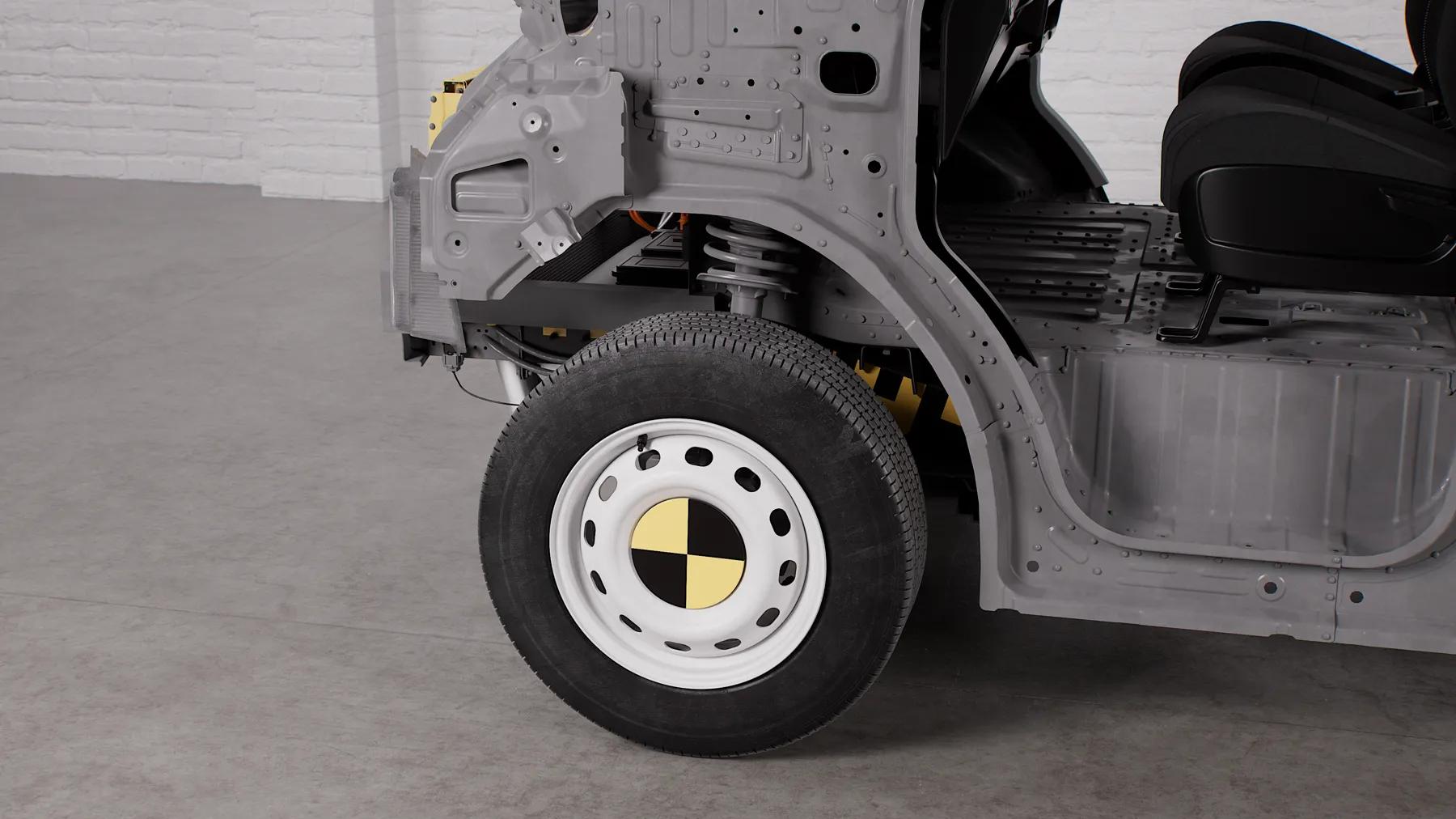

- Front suspension
- MacPherson independent suspension
- Rear suspension
- Leaf-spring non-independent suspension
- Brake system
- OneBox (including ESC)
- Parking brake
- EPB (including AutoHold)
- Power-assisted steering
- DP-EPS
- Tires
- 195/75 R16 (low rolling resistance)
07 // A configurable foundation

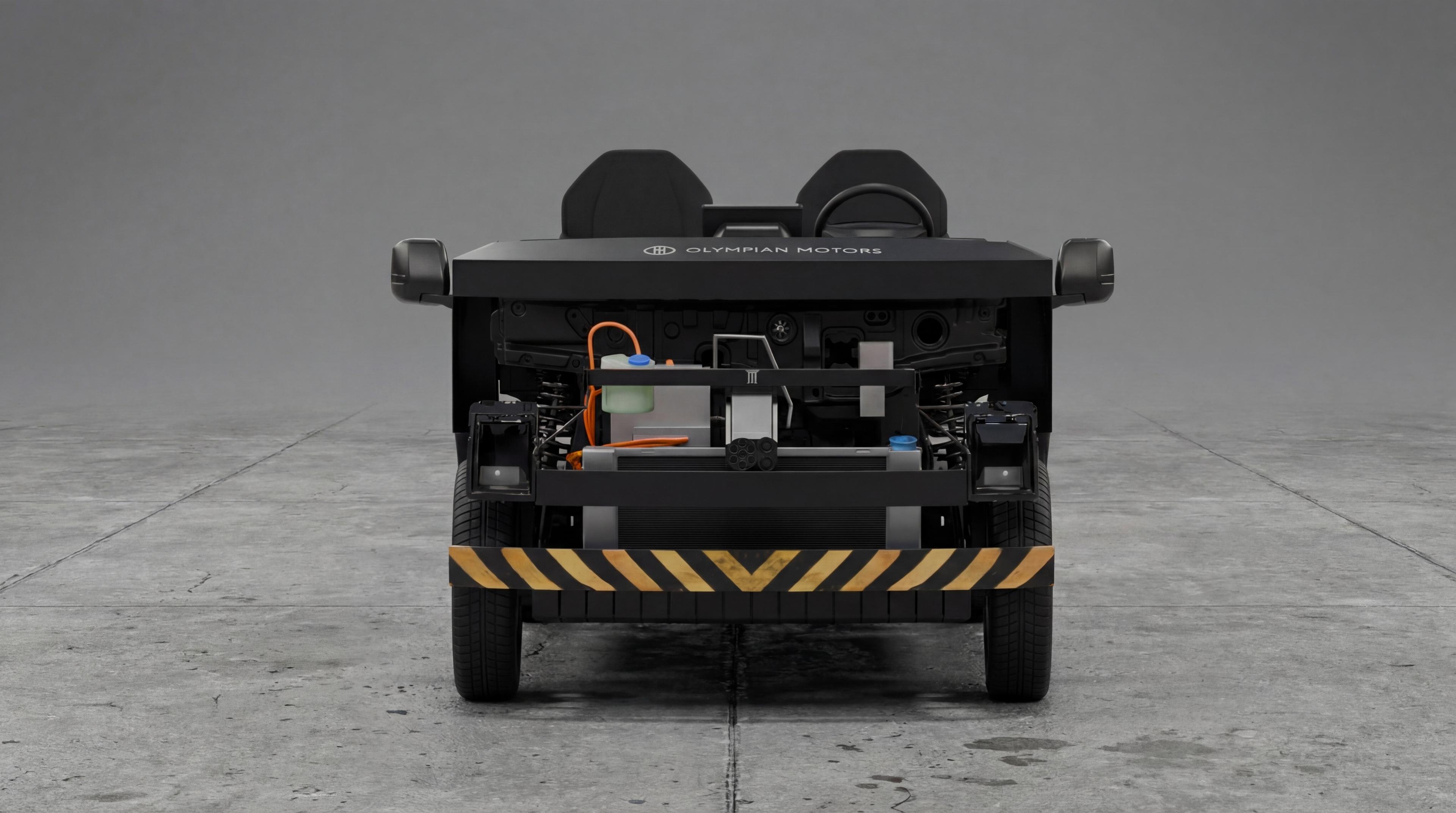

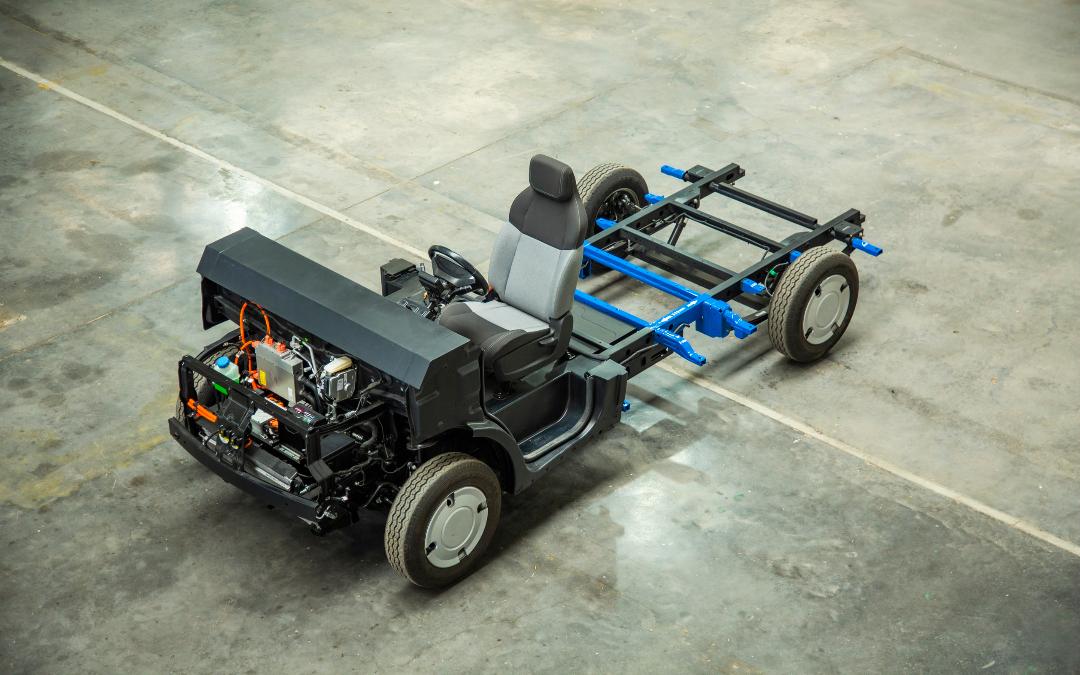

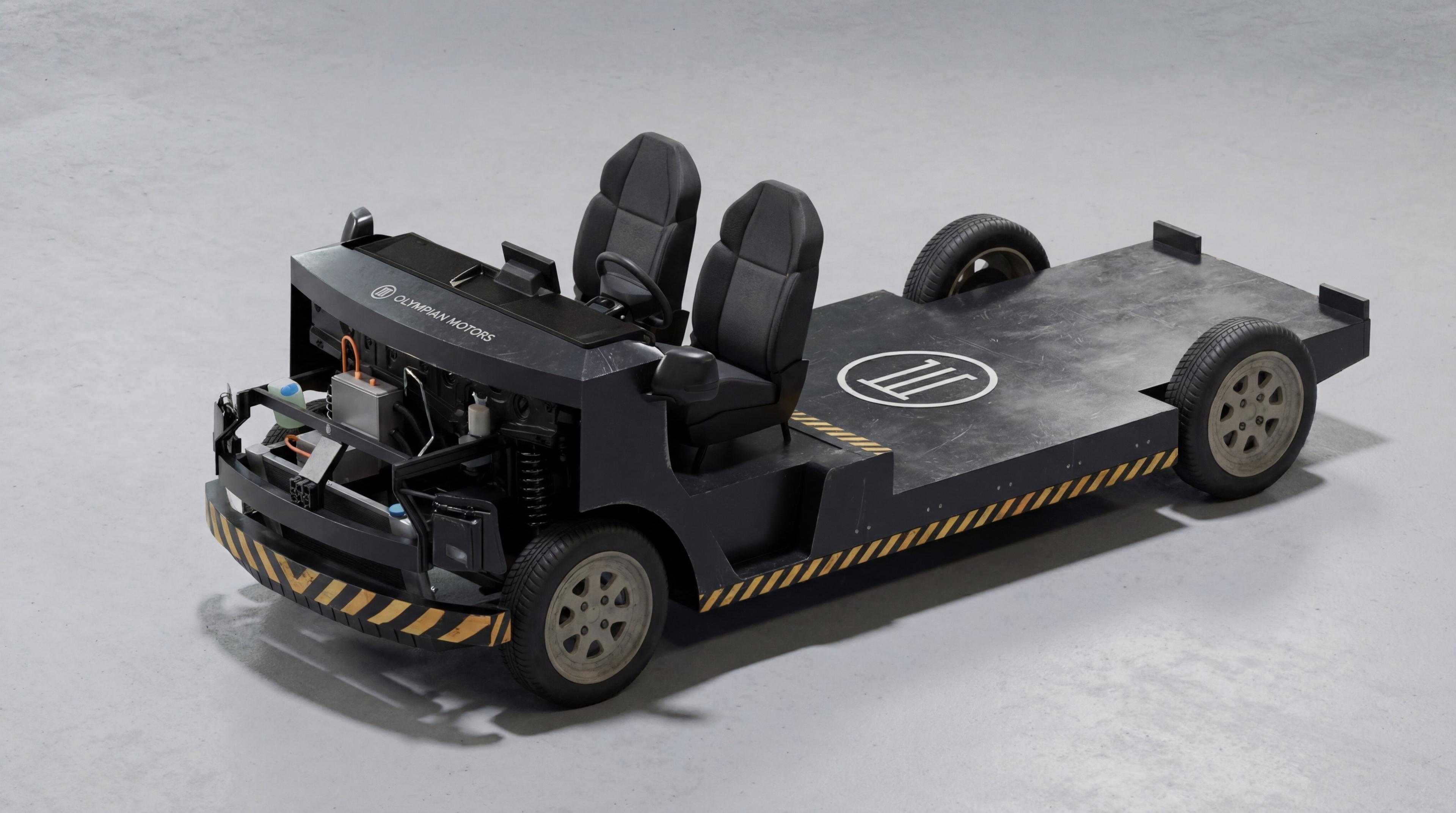

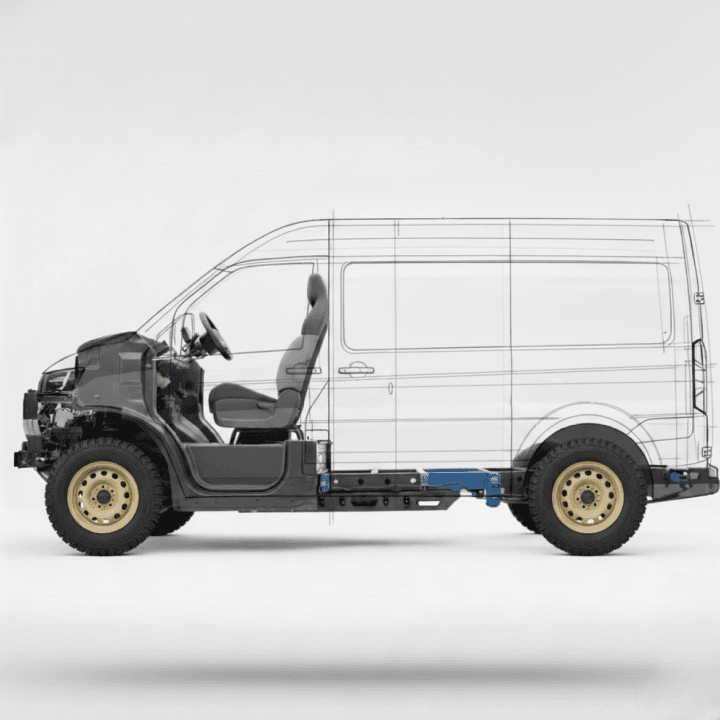

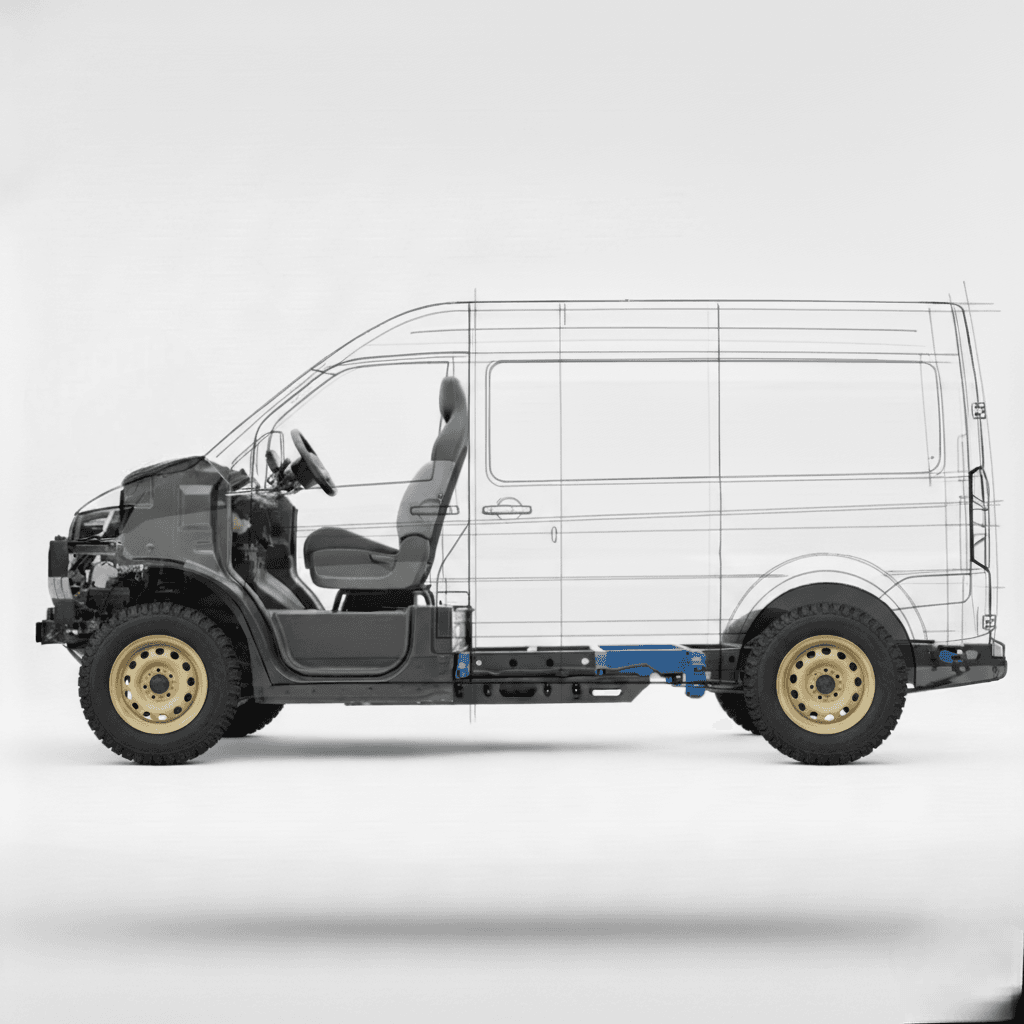

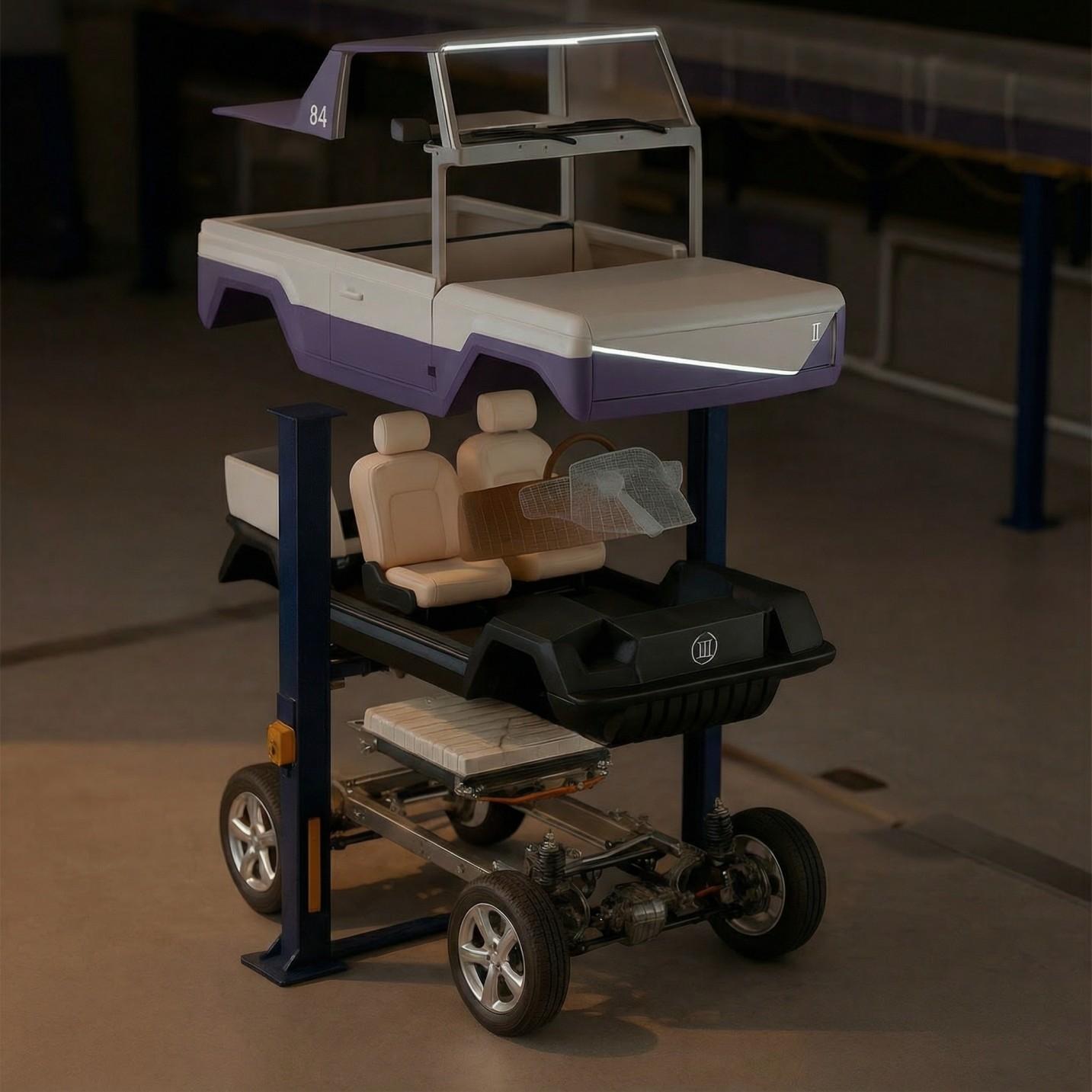

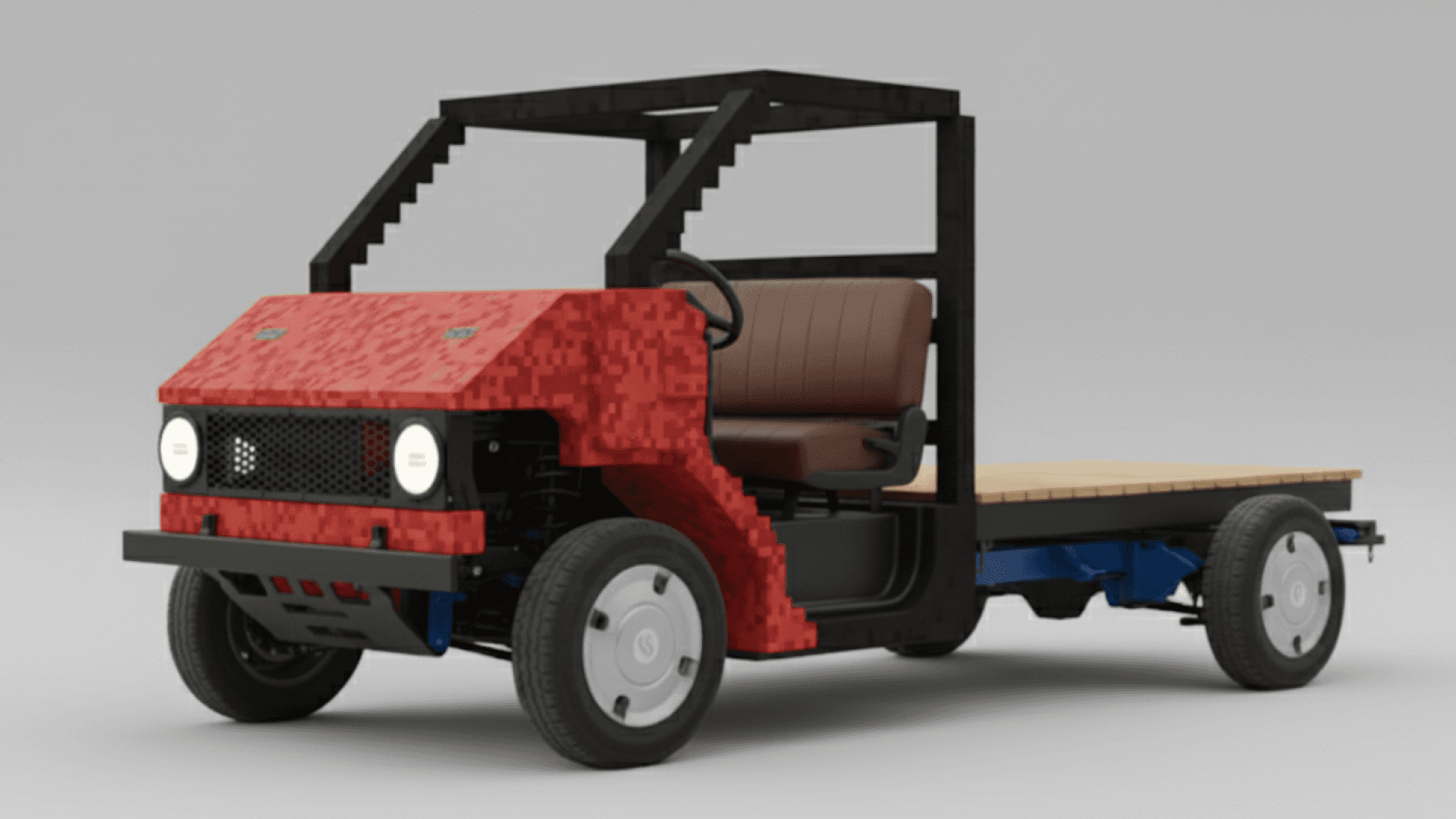

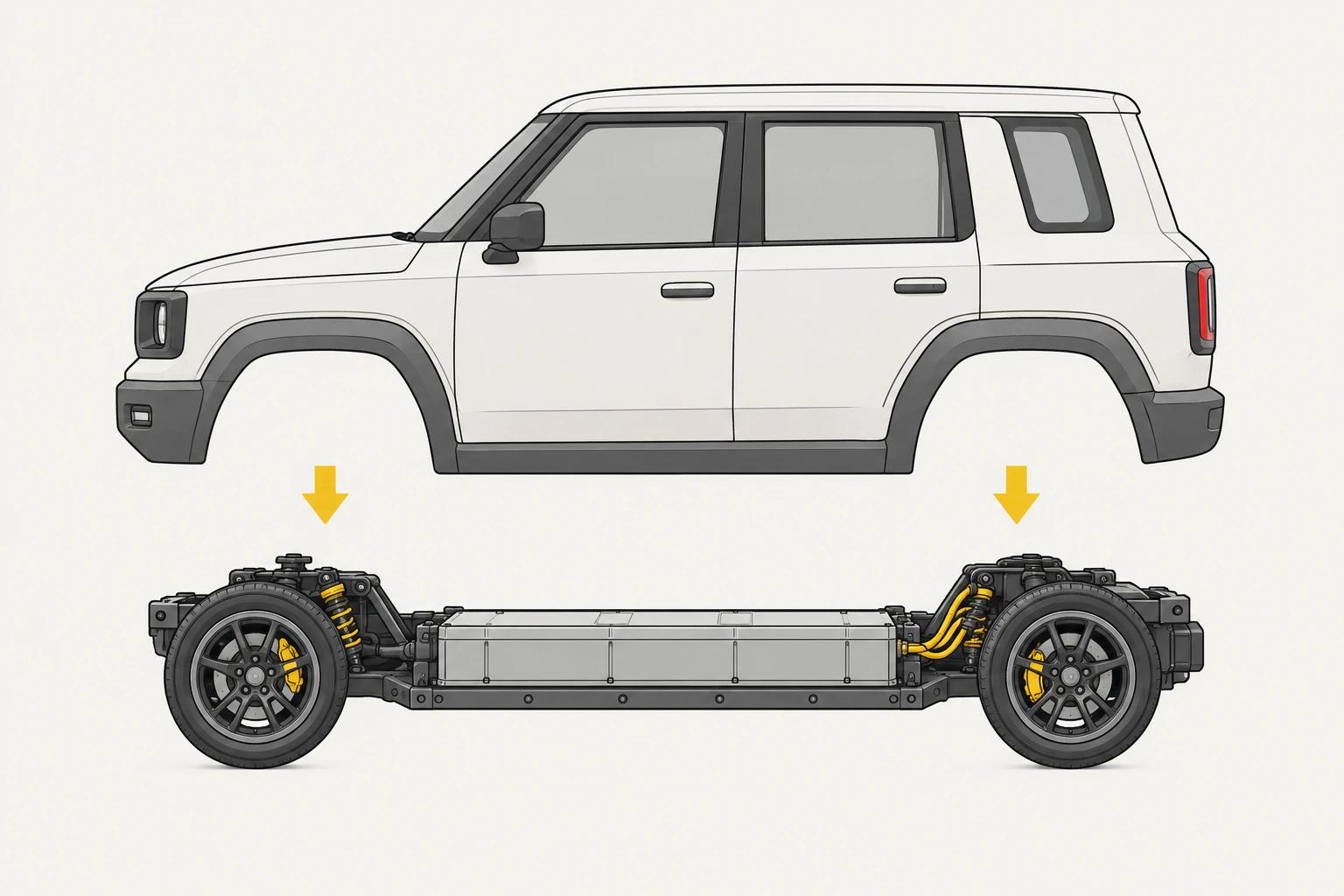

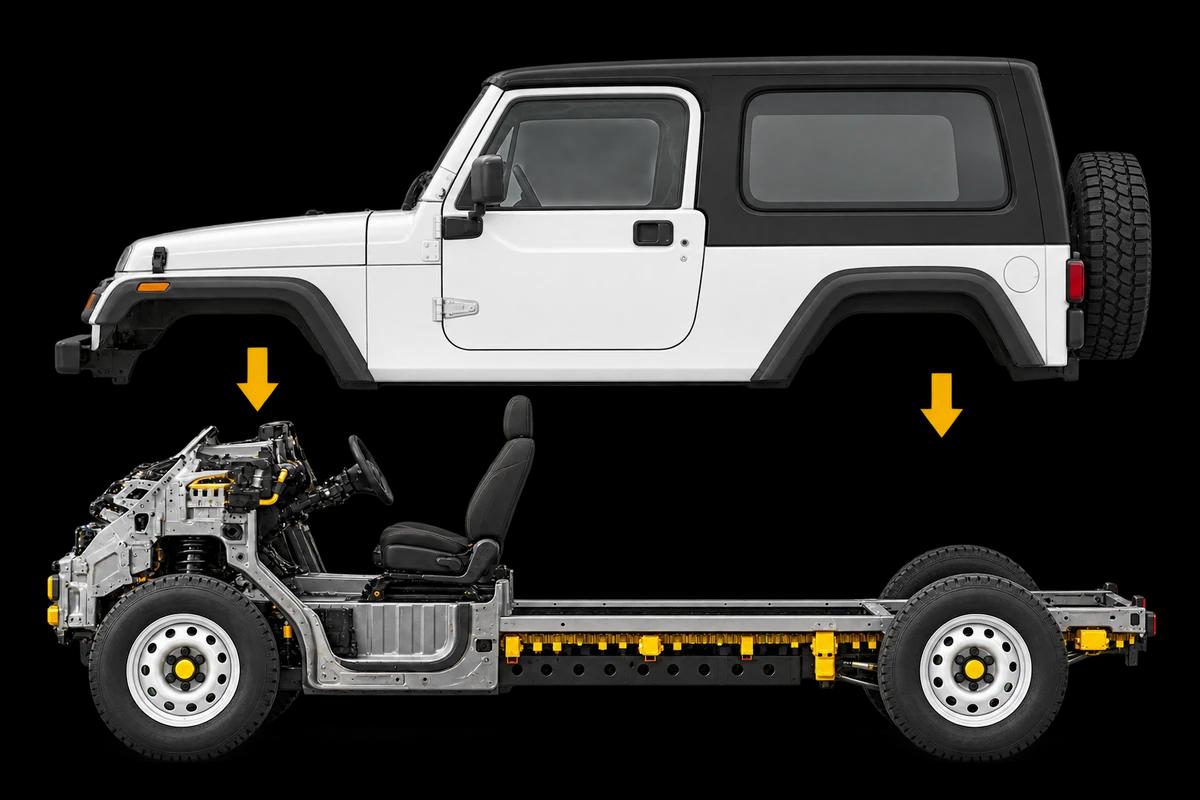

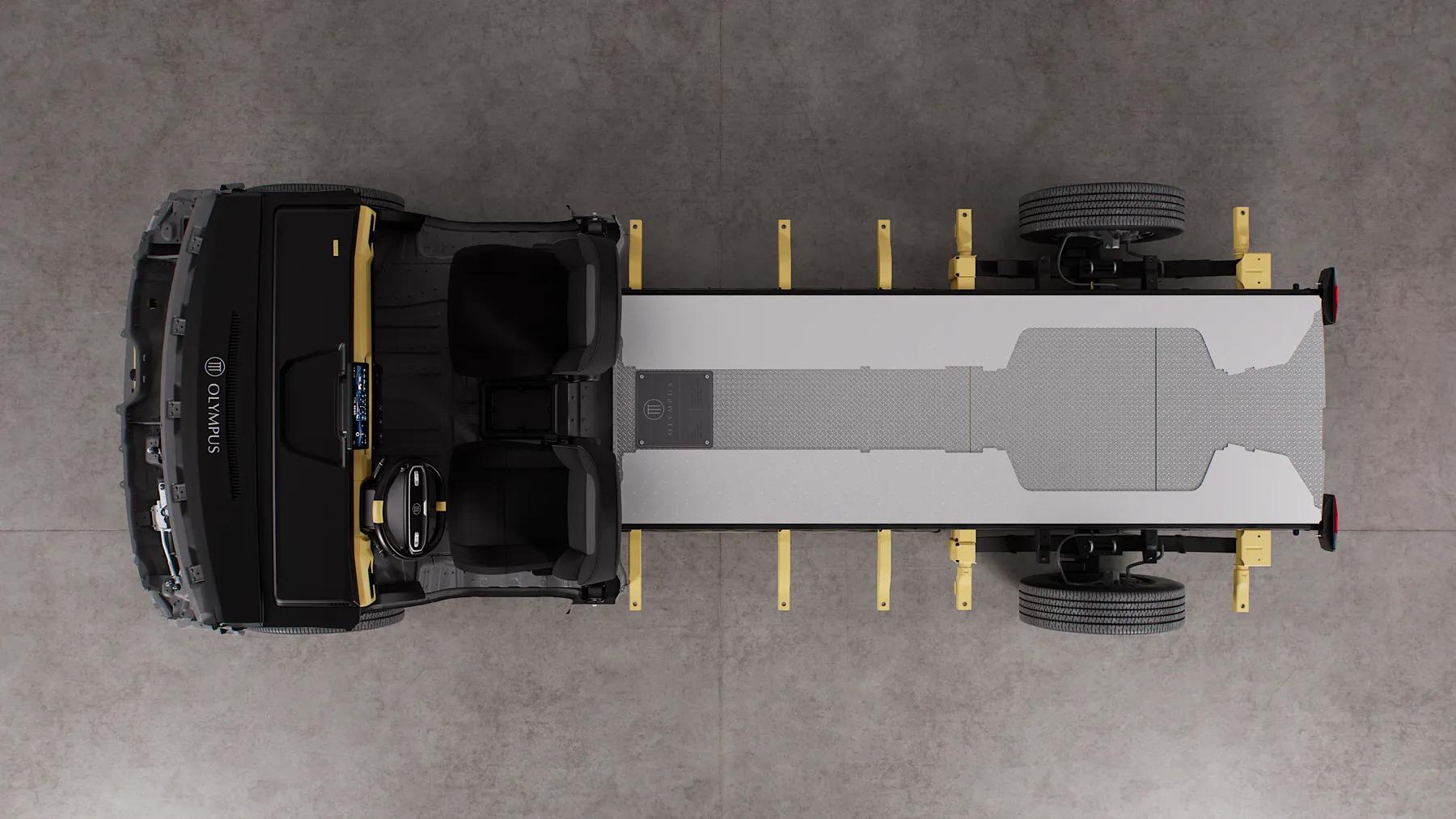

One chassis. Multiple possibilities.
08 // Open design resources

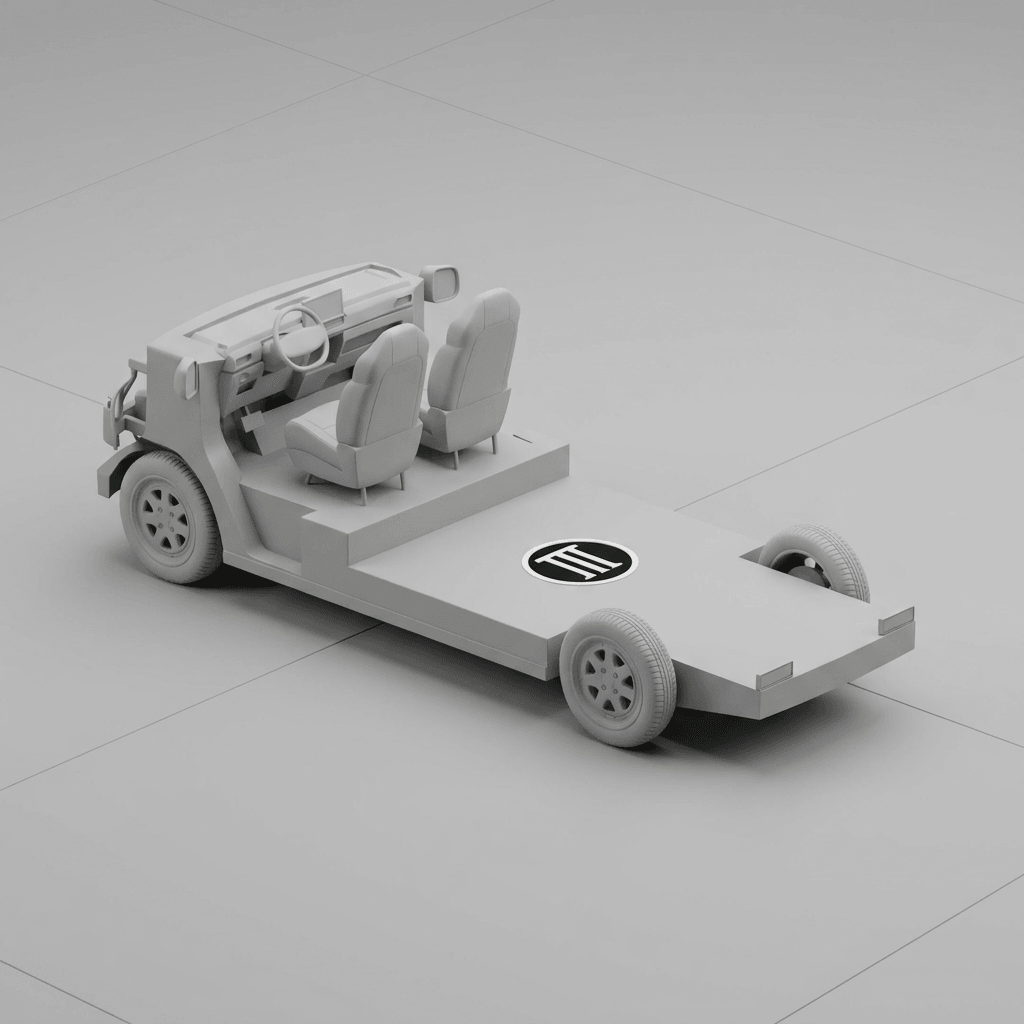

Download the Olympus V3.0 3D model.
Start designing around the platform with digital geometry and the resources needed to evaluate your build.
- 3D platform model
- Platform reference material
- Integration starting point
09 // Start your build
What Will You Build?
Share the vehicle, fleet, or machine you have in mind. Our platform team will review the idea and follow up directly.
